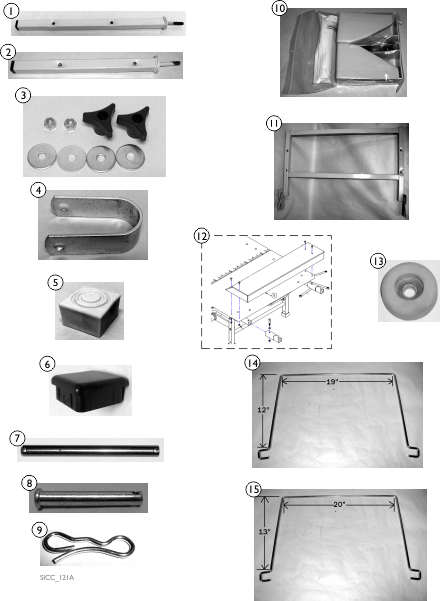

Steel and Frame Parts - BD0880/76 (continued)
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 1186524 | Post, Foot | 1 | 1 |
$14.00 |
Create/add to WishlistCreate/add to Wishlist |
|
3 |
KIT78
|
Kit, Head & Foot Board Mounting Hardware | 1 | 1 |
$21.00 |
Create/add to WishlistCreate/add to Wishlist |
|
4 | MTRBRACKP1 | Bracket, Motor Mount, Floating | 1 | 1 | A |
Create/add to WishlistCreate/add to Wishlist |
|
5 | GLDBEDFOOT | Foot, Bed - Rubber Santoprene | 1 | 1 |
$2.00 |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1186845 | Plug, Bed Foot | 1 | 1 |
$2.00 |
Create/add to WishlistCreate/add to Wishlist |
|
7 | PIN38412 | NLA - Pin, 4-1/2" Straight | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
8 | PIN380212 | Clevis Pin (3/8 x 2-1/2" L) | 1 | 1 |
$1.00 |
Create/add to WishlistCreate/add to Wishlist |
|
9 | PINBOW516 | NLA - Pin, Cotter, Bowtie | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
10 |
MATTKPRKIT
|
Kit, Mattress Keeper, Left and Right Corners | 1 | 1 |
$25.00 |
Create/add to WishlistCreate/add to Wishlist |
|
11 | IHECTA | NLA - Trapeze Adapter | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
12 | KIT19EARRO | NLA - Extension Kit - 4" | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
12 | DECK0005KIT | NLA - Kit, Old Style Foot Deck for DLX/ALLTO | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
13 | GLDBUMPER | Rubber Bed Foot & Wall Bumper | 1 | 1 |
$3.00 |
D |
Create/add to WishlistCreate/add to Wishlist |
14 | WBB000576PL | NLA - Wireform, 76" | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
15 | WBB000580PL | NLA - Wireform, 80" | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Order through SFI Medical Solutions |
B | Includes Frame, Mounting Hardware and 2 ea. Male Frencher Plates. |
C | Does not come with Bolster Pad, must use 84" Mattress. (Order from SFI Medical Solutions). |
D | Optional (2 per Wireform). |
