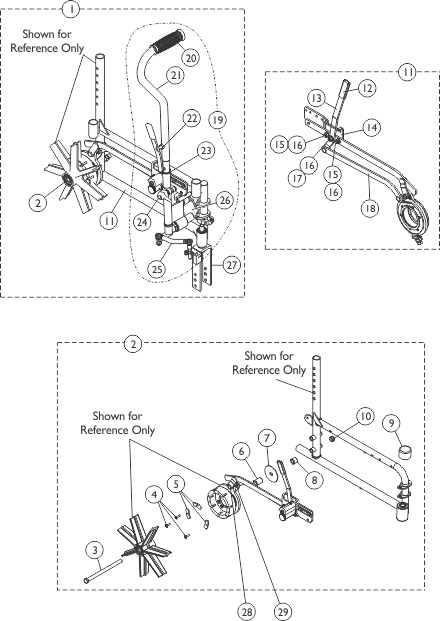

Cyclical Lever Drive - 7 Spoke - After 9/01
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | The Cyclical Lever Drive requires the use of treaded rear wheels and is only available on 16", 17" and 18" deep chairs. Hemi seat-to-floor must use space saver arms. |
| B | The above options are not available with amputee attachment, offset axle, Super Low seat-to-floor or with adjustable caster journal. |
| C | Includes items 2-28. If a customer is changing a CLD from one side to the opposite side, the side that will not have the CLD may need a wheel lock ordered as well. |
| D | Includes items 2-10. |
| E | Includes items 12-18. |
| F | Includes items 20-26. |
| G | Not shown. |
| H | Specify 71P Silver Vein when ordering. No Longer Available. See Item #1 Chrome CLD Kits as a replacement. |
| I | Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy. |
| J | Before 10/12/16. |
| K | After 10/11/16. |
