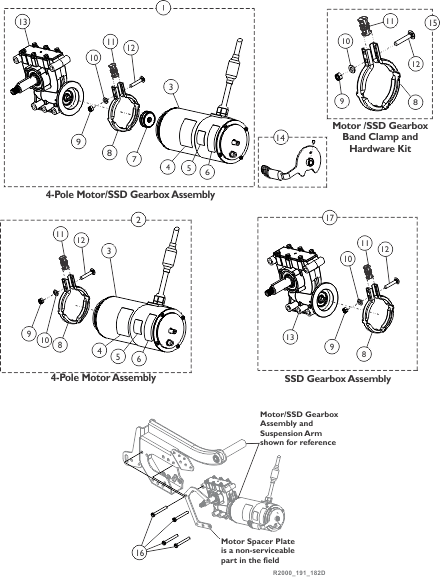

Motors - 4 Pole & SSD Gearboxes For MK6i Electronics (US and Canada After 8/29/17)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Item Number

Description

Torque 3 (Std.) Right Side

Torque 3 (Std.) Left Side

Kit, 4-Pole Low Speed Motor/18:1 SSD Gearbox Assembly

Note-A ,G

1195940

Part/Kit Description	Qty/Pkg	Qty/Asbly
Instruction Sheet, Installation	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Grease, Super Lube (1cc Tube)	1	1
Label, Refer To User Manual	1	1
4-Pole Low Speed Motor/18:1 SSD Gearbox Assembly - Right	1	1

MSRP: $903.00

Note-A ,G

1195941

Part/Kit Description	Qty/Pkg	Qty/Asbly
Instruction Sheet, Installation	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Grease, Super Lube (1cc Tube)	1	1
Label, Refer To User Manual	1	1
Kit, 4-Pole Low Speed Motor/18:1 SSD Gearbox Assembly - Left	1	1

MSRP: $903.00

Kit, Motor Assembly, 4-Pole Low Speed

Note-B ,G

1195984

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (M6 x 1)	1	1
Spacer, Clamp, Molded	1	1
Instruction Sheet, Installation	1	1
Clamp, Band	1	1
Washer, Plain (1/4 x 1/2 x 9/16")	1	1
Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Grease, Super Lube (1cc Tube)	1	1
Label, Refer To User Manual	1	1
Motor Assembly, 4-Pole Low Speed	1	1
Sheet, Insert Parts Service	1	1

MSRP: $582.00

Note-B ,G

1195984

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (M6 x 1)	1	1
Spacer, Clamp, Molded	1	1
Instruction Sheet, Installation	1	1
Clamp, Band	1	1
Washer, Plain (1/4 x 1/2 x 9/16")	1	1
Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Grease, Super Lube (1cc Tube)	1	1
Label, Refer To User Manual	1	1
Motor Assembly, 4-Pole Low Speed	1	1
Sheet, Insert Parts Service	1	1

MSRP: $582.00

Package, Coupling/Cup Assembly (Pkg. of 10)

1168883

MSRP: $87.00

1168883

MSRP: $87.00

14.

Kit, Brake Lever Assembly w/ Set Screw, 4-Pole Motor (Pair)

Note-D

1169004

Part/Kit Description	Qty/Pkg	Qty/Asbly
Brake Lever Assembly w/ Set Screw, 4-Pole Motor - Right	1	1
Brake Lever Assembly w/ Set Screw, 4-Pole Motor - Left	1	1

MSRP: $45.00

Note-D

1169004

Part/Kit Description	Qty/Pkg	Qty/Asbly
Brake Lever Assembly w/ Set Screw, 4-Pole Motor - Right	1	1
Brake Lever Assembly w/ Set Screw, 4-Pole Motor - Left	1	1

MSRP: $45.00

Not Shown

Screw, Set Socket Cup Point w/ Patch (M5 x .8 x 6mm)

Note-I

1168665- NLA

Note-I

1168665- NLA

15.

Kit, Motor/SSD Gearbox Band Clamp and Hardware

Note-E

1168884

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (M6 x 1)	1	1
Spacer, Clamp, Molded	1	1
Instruction Sheet, Installation	1	1
Clamp, Band	1	1
Washer, Plain (1/4 x 1/2 x 9/16")	1	1
Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
Grease, Super Lube (1cc Tube)	1	1
Sheet, Insert Parts Service	1	1

MSRP: $20.00

Note-E

1168884

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (M6 x 1)	1	1
Spacer, Clamp, Molded	1	1
Instruction Sheet, Installation	1	1
Clamp, Band	1	1
Washer, Plain (1/4 x 1/2 x 9/16")	1	1
Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
Grease, Super Lube (1cc Tube)	1	1
Sheet, Insert Parts Service	1	1

MSRP: $20.00

16.

Package, Screw, Hex Head w/ Patch (M8 x 1.25 x 60mm) (Pkg. of 4)

1169645

MSRP: $11.00

1169645

MSRP: $11.00

17.

Kit, SSD Gearbox Assembly, 18:1

Note-C ,G

1179219

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (M6 x 1)	1	1
Spacer, Clamp, Molded	1	1
Instruction Sheet, Installation	1	1
Clamp, Band	1	1
Washer, Plain (1/4 x 1/2 x 9/16")	1	1
Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
Gearbox Assembly, SSD, 18:1 - RWD/FWD-Right & CWD-Left	1	1
Grease, Super Lube (1cc Tube)	1	1
Sheet, Insert Parts Service	1	1

MSRP: $566.00

Note-C ,G

1179220

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (M6 x 1)	1	1
Spacer, Clamp, Molded	1	1
Instruction Sheet, Installation	1	1
Clamp, Band	1	1
Washer, Plain (1/4 x 1/2 x 9/16")	1	1
Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
Gearbox Assembly, SSD, 18:1 - RWD/FWD-Left & CWD-Right	1	1
Grease, Super Lube (1cc Tube)	1	1
Sheet, Insert Parts Service	1	1

MSRP: $566.00

Not Shown

Package, Grease, Super Lube (1cc Tube) (Pkg. of 10)

Note-H

1180609

MSRP: $17.00

Note-H

1180609

MSRP: $17.00

Not Shown

Cap, Brake Lever End

1101725

MSRP: $8.00

1101725

MSRP: $8.00

Not Shown

Package, Cap, Brake Lever End (Pkg. of 10)

1130584

MSRP: $30.00

1130584

MSRP: $30.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Includes items 3-13, Super Lube Grease and Instruction Sheet. NOTE: Brake Lever Item #14 is "not" included.
B	Includes items 3-6, 8-12, Super Lube Grease and Instruction Sheet. The Motor can be used on the right or left side of the wheelchair. NOTE: Brake Lever Item #14 is "not" included.
C	Includes items 8-13, Super Lube Grease and Instruction Sheet.
D	Brake Lever Assembly sold as a pair that includes the right and left side Brake Levers, (2) ea. Brake Lever End Caps, (2) ea. Set Screws - see part #1168665 to order separately. Brake Lever End Cap can be sold separately. See part # 1101725.
E	Includes items 8-12.
F	Kit includes (4) Brushes, (4) Brush Caps and Instruction Sheet.
G	Before placing an order, it is recommended to call Invacare's Technical Service Department at (1-800-832-4707) to verify if the Motor, SSD Gearbox or the Motor/SSD Gearbox Assembly is needed.
H	Super Lube Grease is applied to the Gearbox Output Shaft.
I	Use part #1168665 Screw, Set Socket Cup Point w/ Patch (M5 x .8 x 6mm) to hold item #13 Brake Lever in place.

4-Pole Motors/ Gearboxes For MK6i Electronics - Torque 3 (Std.)

N/A

See Chart

Added to Cart

Item Number

Description

(PERF) Torque SP (Std.) Right Side

(PERF) Torque SP (Std.) Left Side

Kit, 4-Pole High Speed Motor/18:1 SSD Gearbox Assembly

Note-B ,H

1195942

Part/Kit Description	Qty/Pkg	Qty/Asbly
Instruction Sheet, Installation	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Grease, Super Lube (1cc Tube)	1	1
Label, Refer To User Manual	1	1
4-Pole High Speed Motor/18:1 SSD Gearbox Assembly - Right	1	1

MSRP: $903.00

Note-B ,H

1195943

Part/Kit Description	Qty/Pkg	Qty/Asbly
Instruction Sheet, Installation	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Grease, Super Lube (1cc Tube)	1	1
Label, Refer To User Manual	1	1
4-Pole High Speed Motor/18:1 SSD Gearbox Assembly - Left	1	1

MSRP: $903.00

Kit, Motor Assembly, 4-Pole High Speed

Note-C ,H

1195983

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (M6 x 1)	1	1
Spacer, Clamp, Molded	1	1
Instruction Sheet, Installation	1	1
Clamp, Band	1	1
Washer, Plain (1/4 x 1/2 x 9/16")	1	1
Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Grease, Super Lube (1cc Tube)	1	1
Label, Refer To User Manual	1	1
Motor Assembly, 4-Pole High Speed	1	1
Sheet, Insert Parts Service	1	1

MSRP: $582.00

Note-C ,H

1195983

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (M6 x 1)	1	1
Spacer, Clamp, Molded	1	1
Instruction Sheet, Installation	1	1
Clamp, Band	1	1
Washer, Plain (1/4 x 1/2 x 9/16")	1	1
Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Grease, Super Lube (1cc Tube)	1	1
Label, Refer To User Manual	1	1
Motor Assembly, 4-Pole High Speed	1	1
Sheet, Insert Parts Service	1	1

MSRP: $582.00

Package, Coupling/Cup Assembly (Pkg. of 10)

1168883

MSRP: $87.00

1168883

MSRP: $87.00

14.

Kit, Brake Lever Assembly w/ Set Screw, 4-Pole Motor (Pair)

Note-E

1169004

Part/Kit Description	Qty/Pkg	Qty/Asbly
Brake Lever Assembly w/ Set Screw, 4-Pole Motor - Right	1	1
Brake Lever Assembly w/ Set Screw, 4-Pole Motor - Left	1	1

MSRP: $45.00

Note-E

1169004

Part/Kit Description	Qty/Pkg	Qty/Asbly
Brake Lever Assembly w/ Set Screw, 4-Pole Motor - Right	1	1
Brake Lever Assembly w/ Set Screw, 4-Pole Motor - Left	1	1

MSRP: $45.00

Not Shown

Screw, Set Socket Cup Point w/ Patch (M5 x .8 x 6mm)

Note-J

1168665- NLA

Note-J

1168665- NLA

15.

Kit, Motor/SSD Gearbox Band Clamp and Hardware

Note-F

1168884

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (M6 x 1)	1	1
Spacer, Clamp, Molded	1	1
Instruction Sheet, Installation	1	1
Clamp, Band	1	1
Washer, Plain (1/4 x 1/2 x 9/16")	1	1
Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
Grease, Super Lube (1cc Tube)	1	1
Sheet, Insert Parts Service	1	1

MSRP: $20.00

Note-F

1168884

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (M6 x 1)	1	1
Spacer, Clamp, Molded	1	1
Instruction Sheet, Installation	1	1
Clamp, Band	1	1
Washer, Plain (1/4 x 1/2 x 9/16")	1	1
Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
Grease, Super Lube (1cc Tube)	1	1
Sheet, Insert Parts Service	1	1

MSRP: $20.00

16.

Package, Screw, Hex Head w/ Patch (M8 x 1.25 x 60mm) (Pkg. of 4)

1169645

MSRP: $11.00

1169645

MSRP: $11.00

17.

Kit, SSD Gearbox Assembly, 18:1

Note-D ,H

1179219

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (M6 x 1)	1	1
Spacer, Clamp, Molded	1	1
Instruction Sheet, Installation	1	1
Clamp, Band	1	1
Washer, Plain (1/4 x 1/2 x 9/16")	1	1
Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
Gearbox Assembly, SSD, 18:1 - RWD/FWD-Right & CWD-Left	1	1
Grease, Super Lube (1cc Tube)	1	1
Sheet, Insert Parts Service	1	1

MSRP: $566.00

Note-D ,H

1179220

Part/Kit Description	Qty/Pkg	Qty/Asbly
Locknut (M6 x 1)	1	1
Spacer, Clamp, Molded	1	1
Instruction Sheet, Installation	1	1
Clamp, Band	1	1
Washer, Plain (1/4 x 1/2 x 9/16")	1	1
Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
Gearbox Assembly, SSD, 18:1 - RWD/FWD-Left & CWD-Right	1	1
Grease, Super Lube (1cc Tube)	1	1
Sheet, Insert Parts Service	1	1

MSRP: $566.00

Not Shown

Package, Grease, Super Lube (1cc Tube) (Pkg. of 10)

Note-I

1180609

MSRP: $17.00

Note-I

1180609

MSRP: $17.00

Not Shown

Cap, Brake Lever End

1101725

MSRP: $8.00

1101725

MSRP: $8.00

Not Shown

Package, Cap, Brake Lever End (Pkg. of 10)

1130584

MSRP: $30.00

1130584

MSRP: $30.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Performance package (PERF) provides a 6.5 MPH rating.
B	Includes items 3-13, Super Lube Grease and Instruction Sheet. NOTE: Brake Lever Item #14 is "not" included.
C	Includes items 3-6, 8-12, Super Lube Grease and Instruction Sheet. The Motor can be used on the right or left side of the wheelchair. NOTE: Brake Lever Item #14 is "not" included.
D	Includes items 8-13, Super Lube Grease and Instruction Sheet.
E	Brake Lever Assembly sold as a pair that includes the right and left side Brake Levers, (2) ea. Brake Lever End Caps, (2) ea. Set Screws - see part #1168665 to order separately. Brake Lever End Cap can be sold separately. See part # 1101725.
F	Includes items 8-12.
G	Kit includes (4) Brushes, (4) Brush Caps and Instruction Sheet.
H	Before placing an order, it is recommended to call Invacare's Technical Service Department at (1-800-832-4707) to verify if the Motor, SSD Gearbox or the Motor/SSD Gearbox Assembly is needed.
I	Super Lube Grease is applied to the Gearbox Output Shaft.
J	Use part #1168665 Screw, Set Socket Cup Point w/ Patch (M5 x .8 x 6mm) to hold item #13 Brake Lever in place.

4-Pole Motors/ Gearboxes For MK6i Electronics - Torque SP w/ (PERF) (Std.)

N/A

Catalog Literature

Parts Books for Storm Series® 3G (Elevating Seat included ESS6-STM)

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Motors - 4 Pole & SSD Gearboxes For MK6i Electronics (US and Canada After 8/29/17)

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Catalog Literature
