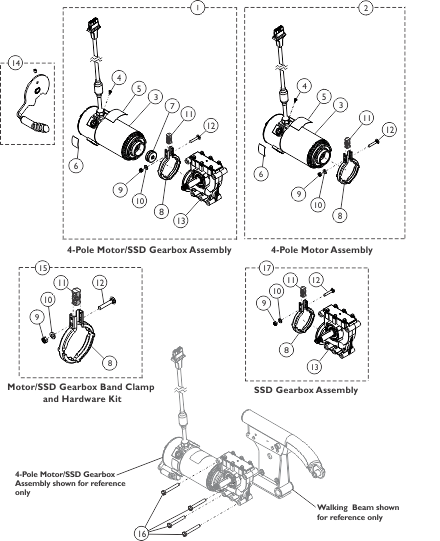

Motors, 4-Pole, SSD Gearbox and Mounting Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1171987

Part/Kit Description	Qty/Pkg	Qty/Asbly
4-Pole Low Speed Motor/18:1 SSD Gearbox Assembly - Right	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Instruction Sheet, Installation	1	1
Grease, Super Lube (1cc Tube)	1	1

NLA - Kit, 4-Pole Low Speed Motor/18:1 SSD Gearbox Assembly - Right

N/A

A ,C ,K ,N

Create/add to Wishlist

1171988

Part/Kit Description	Qty/Pkg	Qty/Asbly
4-Pole Low Speed Motor/18:1 SSD Gearbox Assembly - Left	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Instruction Sheet, Installation	1	1
Grease, Super Lube (1cc Tube)	1	1

NLA - Kit, 4-Pole Low Speed Motor/18:1 SSD Gearbox Assembly - Left

N/A

A ,C ,K ,N

Create/add to Wishlist

1171992

Part/Kit Description	Qty/Pkg	Qty/Asbly
4-Pole High Speed Motor/23:1 SSD Gearbox Assembly - Right	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Instruction Sheet, Installation	1	1
Grease, Super Lube (1cc Tube)	1	1

NLA - Kit, 4-Pole High Speed Motor/23:1 SSD Gearbox Assembly - Right

N/A

B ,C ,K ,P

Create/add to Wishlist

60126972

Part/Kit Description	Qty/Pkg	Qty/Asbly
4-Pole High Speed Motor/23:1 SSD Gearbox Assembly - Right	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Sheet, Insert Parts Service	1	1
Grease, Super Lube (1cc Tube)	1	1
Label, Refer To User Manual	1	1
4-Pole High Speed Motor/23:1 SSD Gearbox Assembly - Right	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Sheet, Insert Parts Service	1	1
Grease, Super Lube (1cc Tube)	1	1
Label, Refer To User Manual	1	1
4-Pole High Speed Motor/23:1 SSD Gearbox Assembly - Right	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Sheet, Insert Parts Service	1	1
Grease, Super Lube (1cc Tube)	1	1
Label, Refer To User Manual	1	1

Kit, 4-Pole High Speed Motor/23:1 SSD Gearbox Assembly - Right

$903.00

B ,C ,K

Create/add to Wishlist

1171993

Part/Kit Description	Qty/Pkg	Qty/Asbly
4-Pole High Speed Motor/23:1 SSD Gearbox Assembly - Left	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Instruction Sheet, Installation	1	1
Grease, Super Lube (1cc Tube)	1	1

NLA - Kit, 4-Pole High Speed Motor/23:1 SSD Gearbox Assembly - Left

N/A

B ,C ,K ,Q

Create/add to Wishlist

60126973

Part/Kit Description	Qty/Pkg	Qty/Asbly
4-Pole High Speed Motor/23:1 SSD Gearbox Assembly - Left	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Sheet, Insert Parts Service	1	1
Grease, Super Lube (1cc Tube)	1	1
Label, Refer To User Manual	1	1
4-Pole High Speed Motor/23:1 SSD Gearbox Assembly - Left	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Sheet, Insert Parts Service	1	1
Grease, Super Lube (1cc Tube)	1	1
Label, Refer To User Manual	1	1
4-Pole High Speed Motor/23:1 SSD Gearbox Assembly - Left	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Sheet, Insert Parts Service	1	1
Grease, Super Lube (1cc Tube)	1	1
Label, Refer To User Manual	1	1

Kit, 4-Pole High Speed Motor/23:1 SSD Gearbox Assembly - Left

$903.00

B ,C ,K

Create/add to Wishlist

1179217

Part/Kit Description	Qty/Pkg	Qty/Asbly
Motor Assembly, 4-Pole Low Speed	1	1
Screw, Phillips Pan Head Tap (M4 x .7 x 6mm)	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Clamp, Band	1	1
Locknut (M6 x 1)	1	1
Washer, Plain (1/4 x 1/2 x 9/16")	1	1
Spacer, Clamp, Molded	1	1
Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
Instruction Sheet, Installation	1	1
Grease, Super Lube (1cc Tube)	1	1

NLA - Kit, Motor Assembly, 4-Pole Low Speed

N/A

K ,O ,A ,D

Create/add to Wishlist

1179218

Part/Kit Description	Qty/Pkg	Qty/Asbly
Decal, Motor Warning	1	1
Washer, Plain (1/4 x 1/2 x 9/16")	1	1
Instruction Sheet, Installation	1	1
Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
Grease, Super Lube (1cc Tube)	1	1
Decal, Push/Drive	1	1
Motor Assembly, 4-Pole High Speed	1	1
Screw, Phillips Pan Head Tap (M4 x .7 x 6mm)	1	1
Clamp, Band	1	1
Spacer, Clamp, Molded	1	1
Locknut (M6 x 1)	1	1
Motor Assembly, 4-Pole High Speed	1	1
Screw, Phillips Pan Head Tap (M4 x .7 x 6mm)	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Clamp, Band	1	1
Locknut (M6 x 1)	1	1
Washer, Plain (1/4 x 1/2 x 9/16")	1	1
Spacer, Clamp, Molded	1	1
Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
Instruction Sheet, Installation	1	1
Grease, Super Lube (1cc Tube)	1	1

NLA - Kit, Motor Assembly, 4-Pole High Speed

N/A

B ,D ,K ,R

Create/add to Wishlist

1195983

Part/Kit Description	Qty/Pkg	Qty/Asbly
Grease, Super Lube (1cc Tube)	1	1
Washer, Plain (1/4 x 1/2 x 9/16")	1	1
Locknut (M6 x 1)	1	1
Motor Assembly, 4-Pole High Speed	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Label, Refer To User Manual	1	1
Clamp, Band	1	1
Locknut (M6 x 1)	1	1
Washer, Plain (1/4 x 1/2 x 9/16")	1	1
Spacer, Clamp, Molded	1	1
Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
Instruction Sheet, Installation	1	1
Sheet, Insert Parts Service	1	1
Grease, Super Lube (1cc Tube)	1	1
Decal, Motor Warning	1	1
Clamp, Band	1	1
Decal, Push/Drive	1	1
Instruction Sheet, Installation	1	1
Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
Motor Assembly, 4-Pole High Speed	1	1
Sheet, Insert Parts Service	1	1
Label, Refer To User Manual	1	1
Spacer, Clamp, Molded	1	1
Motor Assembly, 4-Pole High Speed	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Label, Refer To User Manual	1	1
Clamp, Band	1	1
Locknut (M6 x 1)	1	1
Washer, Plain (1/4 x 1/2 x 9/16")	1	1
Spacer, Clamp, Molded	1	1
Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
Instruction Sheet, Installation	1	1
Sheet, Insert Parts Service	1	1
Grease, Super Lube (1cc Tube)	1	1
Motor Assembly, 4-Pole High Speed	1	1
Decal, Motor Warning	1	1
Decal, Push/Drive	1	1
Label, Refer To User Manual	1	1
Clamp, Band	1	1
Locknut (M6 x 1)	1	1
Washer, Plain (1/4 x 1/2 x 9/16")	1	1
Spacer, Clamp, Molded	1	1
Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
Instruction Sheet, Installation	1	1
Sheet, Insert Parts Service	1	1
Grease, Super Lube (1cc Tube)	1	1

Kit, Motor Assembly, 4-Pole High Speed

$582.00

B ,D ,K

Create/add to Wishlist

1168883

Package, Coupling/Cup Assembly

$87.00

Create/add to Wishlist

1179219

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Sheet, Insert Parts Service	1	1
	Grease, Super Lube (1cc Tube)	1	1
	Sheet, Insert Parts Service	1	1
8	Locknut (M6 x 1)	1	1
	Instruction Sheet, Installation	1	1
9	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
10	Spacer, Clamp, Molded	1	1
11	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
7	Clamp, Band	1	1
12	Gearbox Assembly, SSD, 18:1 - RWD/FWD-Right & CWD-Left	1	1
	Grease, Super Lube (1cc Tube)	1	1
7	Clamp, Band	1	1
12	Gearbox Assembly, SSD, 18:1 - RWD/FWD-Right & CWD-Left	1	1
	Instruction Sheet, Installation	1	1
	Grease, Super Lube (1cc Tube)	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
13	Gearbox Assembly, SSD, 18:1 - RWD/FWD-Right & CWD-Left	1	1
	Instruction Sheet, Installation	1	1
	Sheet, Insert Parts Service	1	1
	Grease, Super Lube (1cc Tube)	1	1
8	Locknut (M6 x 1)	1	1
9	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
10	Spacer, Clamp, Molded	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
13	Gearbox Assembly, SSD, 18:1 - RWD/FWD-Right & CWD-Left	1	1
	Instruction Sheet, Installation	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
13	Gearbox Assembly, SSD, 18:1 - RWD/FWD-Right & CWD-Left	1	1
	Instruction Sheet, Installation	1	1
	Grease, Super Lube (1cc Tube)	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
13	Gearbox Assembly, SSD, 18:1 - RWD/FWD-Right & CWD-Left	1	1
	Instruction Sheet, Installation	1	1
	Grease, Super Lube (1cc Tube)	1	1

Kit, SSD Gearbox Assembly, 18:1 - RWD/FWD-Right & CWD-Left

$566.00

A ,F ,K

Create/add to Wishlist

1179220

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
13	Gearbox Assembly, SSD, 18:1 - RWD/FWD-Left & CWD-Right	1	1
7	Clamp, Band	1	1
11	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
	Sheet, Insert Parts Service	1	1
10	Spacer, Clamp, Molded	1	1
	Instruction Sheet, Installation	1	1
	Grease, Super Lube (1cc Tube)	1	1
	Instruction Sheet, Installation	1	1
	Sheet, Insert Parts Service	1	1
	Grease, Super Lube (1cc Tube)	1	1
8	Locknut (M6 x 1)	1	1
12	Gearbox Assembly, SSD, 18:1 - RWD/FWD-Left & CWD-Right	1	1
9	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
13	Gearbox Assembly, SSD, 18:1 - RWD/FWD-Left & CWD-Right	1	1
	Instruction Sheet, Installation	1	1
	Sheet, Insert Parts Service	1	1
	Grease, Super Lube (1cc Tube)	1	1
10	Spacer, Clamp, Molded	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
	Instruction Sheet, Installation	1	1
	Grease, Super Lube (1cc Tube)	1	1
11	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
7	Clamp, Band	1	1
9	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
8	Locknut (M6 x 1)	1	1
12	Gearbox Assembly, SSD, 18:1 - RWD/FWD-Left & CWD-Right	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
13	Gearbox Assembly, SSD, 18:1 - RWD/FWD-Left & CWD-Right	1	1
	Instruction Sheet, Installation	1	1
	Grease, Super Lube (1cc Tube)	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
13	Gearbox Assembly, SSD, 18:1 - RWD/FWD-Left & CWD-Right	1	1
	Instruction Sheet, Installation	1	1
	Grease, Super Lube (1cc Tube)	1	1

Kit, SSD Gearbox Assembly, 18:1 - RWD/FWD-Left & CWD-Right

$566.00

A ,E ,K

Create/add to Wishlist

1179221

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
10	Spacer, Clamp, Molded	1	1
9	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
	Instruction Sheet, Installation	1	1
	Sheet, Insert Parts Service	1	1
	Grease, Super Lube (1cc Tube)	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
13	Gearbox Assembly, SSD, 23:1 - RWD/FWD-Right & CWD-Left	1	1
	Instruction Sheet, Installation	1	1
	Sheet, Insert Parts Service	1	1
	Grease, Super Lube (1cc Tube)	1	1
12	Gearbox Assembly, SSD, 23:1 - RWD/FWD-Right & CWD-Left	1	1
11	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
7	Clamp, Band	1	1
8	Locknut (M6 x 1)	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
13	Gearbox Assembly, SSD, 23:1 - RWD/FWD-Right & CWD-Left	1	1
	Instruction Sheet, Installation	1	1
	Sheet, Insert Parts Service	1	1
	Grease, Super Lube (1cc Tube)	1	1
8	Locknut (M6 x 1)	1	1
10	Spacer, Clamp, Molded	1	1
12	Gearbox Assembly, SSD, 23:1 - RWD/FWD-Right & CWD-Left	1	1
7	Clamp, Band	1	1
9	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
	Grease, Super Lube (1cc Tube)	1	1
	Instruction Sheet, Installation	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
13	Gearbox Assembly, SSD, 23:1 - RWD/FWD-Right & CWD-Left	1	1
	Instruction Sheet, Installation	1	1
	Grease, Super Lube (1cc Tube)	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
	Instruction Sheet, Installation	1	1
	Grease, Super Lube (1cc Tube)	1	1
13	Gearbox Assembly, SSD, 23:1 - RWD/FWD-Right & CWD-Left	1	1

Kit, SSD Gearbox Assembly, 23:1 - RWD/FWD-Right & CWD-Left

$566.00

B ,F ,K

Create/add to Wishlist

1179222

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
	Grease, Super Lube (1cc Tube)	1	1
9	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
12	Gearbox Assembly, SSD, 23:1 - RWD/FWD-Left & CWD-Right	1	1
	Sheet, Insert Parts Service	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
13	Gearbox Assembly, SSD, 23:1 - RWD/FWD-Left & CWD-Right	1	1
	Instruction Sheet, Installation	1	1
	Sheet, Insert Parts Service	1	1
	Grease, Super Lube (1cc Tube)	1	1
7	Clamp, Band	1	1
8	Locknut (M6 x 1)	1	1
10	Spacer, Clamp, Molded	1	1
	Instruction Sheet, Installation	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
13	Gearbox Assembly, SSD, 23:1 - RWD/FWD-Left & CWD-Right	1	1
	Instruction Sheet, Installation	1	1
	Sheet, Insert Parts Service	1	1
	Grease, Super Lube (1cc Tube)	1	1
11	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
	Grease, Super Lube (1cc Tube)	1	1
9	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
7	Clamp, Band	1	1
8	Locknut (M6 x 1)	1	1
12	Gearbox Assembly, SSD, 23:1 - RWD/FWD-Left & CWD-Right	1	1
10	Spacer, Clamp, Molded	1	1
	Instruction Sheet, Installation	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
13	Gearbox Assembly, SSD, 23:1 - RWD/FWD-Left & CWD-Right	1	1
	Instruction Sheet, Installation	1	1
	Grease, Super Lube (1cc Tube)	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
13	Gearbox Assembly, SSD, 23:1 - RWD/FWD-Left & CWD-Right	1	1
	Instruction Sheet, Installation	1	1
	Grease, Super Lube (1cc Tube)	1	1

Kit, SSD Gearbox Assembly, 23:1 - RWD/FWD-Left & CWD-Right

$566.00

B ,E ,K

Create/add to Wishlist

1169004

Part/Kit Description	Qty/Pkg	Qty/Asbly
Brake Lever Assembly w/ Set Screw, 4-Pole Motor - Left	1	1
Brake Lever Assembly w/ Set Screw, 4-Pole Motor - Right	1	1
Brake Lever Assembly w/ Set Screw, 4-Pole Motor - Right	1	1
Brake Lever Assembly w/ Set Screw, 4-Pole Motor - Left	1	1
Brake Lever Assembly w/ Set Screw, 4-Pole Motor - Right	1	1
Brake Lever Assembly w/ Set Screw, 4-Pole Motor - Left	1	1

Kit, Brake Lever Assembly w/ Set Screw, 4-Pole Motor (Pair)

$45.00

Create/add to Wishlist

1168665

NLA - Screw, Set Socket Cup Point w/ Patch (M5 x .8 x 6mm)

N/A

Create/add to Wishlist

1168884

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
10	Spacer, Clamp, Molded	1	1
9	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
	Instruction Sheet, Installation	1	1
	Sheet, Insert Parts Service	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
	Grease, Super Lube (1cc Tube)	1	1
	Instruction Sheet, Installation	1	1
	Sheet, Insert Parts Service	1	1
7	Clamp, Band	1	1
8	Locknut (M6 x 1)	1	1
	Grease, Super Lube (1cc Tube)	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
	Grease, Super Lube (1cc Tube)	1	1
	Instruction Sheet, Installation	1	1
	Sheet, Insert Parts Service	1	1
10	Spacer, Clamp, Molded	1	1
	Instruction Sheet, Installation	1	1
	Grease, Super Lube (1cc Tube)	1	1
	Grease, Super Lube (1cc Tube)	1	1
7	Clamp, Band	1	1
7	Clamp, Band	1	1
8	Locknut (M6 x 1)	1	1
	Instruction Sheet, Installation	1	1
9	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
8	Locknut (M6 x 1)	1	1
11	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
10	Spacer, Clamp, Molded	1	1
9	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
	Instruction Sheet, Installation	1	1
	Grease, Super Lube (1cc Tube)	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
	Instruction Sheet, Installation	1	1
	Grease, Super Lube (1cc Tube)	1	1
8	Clamp, Band	1	1
9	Locknut (M6 x 1)	1	1
10	Washer, Plain (1/4 x 1/2 x 9/16")	1	1
11	Spacer, Clamp, Molded	1	1
12	Bolt, Round Head Square Neck (M6 x 1 x 35mm)	1	1
	Instruction Sheet, Installation	1	1
	Grease, Super Lube (1cc Tube)	1	1

Kit, Motor/SSD Gearbox Band Clamp and Hardware

$20.00

Create/add to Wishlist

1169645

Package, Screw, Hex Head w/ Patch (M8 x 1.25 x 60mm)

$11.00

Create/add to Wishlist

1101725

Cap, Brake Lever End, Black

$8.00

Create/add to Wishlist

1130584

Package, Cap, Brake Lever End, Black

$30.00

Create/add to Wishlist

1180609

Package, Grease, Super Lube (1cc Tube) (Pkg. of 10)

$17.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Used for 300 Lb. user weight limit.
B	Used for 400 Lb. user weight limit.
C	Includes items 3-13, Super Lube Grease and Instruction Sheet. NOTE: Brake Lever Item #14 is "not" included.
D	Includes items 3-6, 8-12, Super Lube Grease and Instruction Sheet. NOTE: Brake Lever Item #14 is "not" included.
E	Includes items 8-13, Super Lube Grease and Instruction Sheet. NOTE: A left side gearbox that is used on RWD models is assembled to the right side of the wheelchair for TDX SP models.
F	Includes items 8-13, Super Lube Grease and Instruction Sheet. NOTE: A right side gearbox that is used on RWD models is assembled to the left side of the wheelchair for TDX SP models.
G	Brake Lever Assembly sold as a pair that includes the right and left side Brake Levers, (2) ea. Brake Lever End Caps, (2) ea. Set Screws - see part #1168665 to order separately. Brake Lever End Cap can be sold separately. See part #1101725.
H	Includes items 8-12.
I	Not Shown. Kit includes (4) Brushes, (4) Brush Caps and Instruction Sheet.
J	Not Shown. Brake Lever End Cap attaches to item #14 Brake Lever Assembly.
K	Before placing an order, it is recommended to call Invacare's Technical Service Department at (1-800-832-4707) to verify if the Motor, SSD Gearbox or the Motor/SSD Gearbox Assembly is needed.
L	Not Shown. Super Lube Grease is applied to the Gearbox Output Shaft.
M	Not Shown. Use part #1168665 Screw, Set Socket Cup Point w/ Patch (M5 x .8 x 6mm) to hold item #14 Brake Lever in place.
N	No Longer Available. For replacement see page titled "Motors, 4-Pole, SSD Gearbox and Mounting Hardware 300 Lb. After 8/29/17". Refer to item #1. Order in pairs to match.
O	No Longer Available. For replacement see page titled "Motors, 4-Pole, SSD Gearbox and Mounting Hardware 300 Lb. After 8/29/17". Refer to item #2. Order in pairs to match.
P	No Longer Available. For replacement order part number 60126972. Order Right and Left side to match.
Q	No Longer Available. For replacement order part number 60126973. Order Left and Right side to match.
R	No Longer Available. For replacement order part number 1195983. Order in pairs to match when replacing part number 1179218 .

Catalog Literature

Parts Books for TDX®SP/SP-GT/SR

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Motors - 4-Pole - SSD Gearbox & Mtg. Hdwr. (3/16/11-8/29/17 300 lb.) and ALL 400 lb. After 3/15/11

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature
