Motors - 4-Pole - SSD Gearbox & Mtg. Hdwr. 300 lb. After 8/29/17

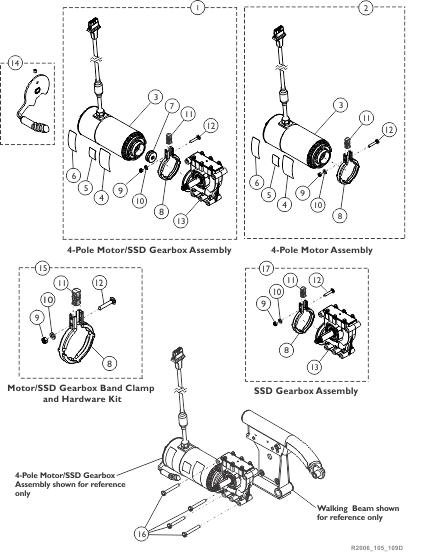

Assembly Part Notes

Note Code Definition
A Used for 300 Lb. user weight limit.
B Includes items 3-13, Super Lube Grease and Instruction Sheet. NOTE: Brake Lever Item #14 is "not" included.
C Includes items 3-6, 8-12, Super Lube Grease and Instruction Sheet. NOTE: Brake Lever Item #14 is "not" included.
D Includes items 8-13, Super Lube Grease and Instruction Sheet. NOTE: A left side gearbox that is used on RWD models is assembled to the right side of the wheelchair for TDX SP models.
E Includes items 8-13, Super Lube Grease and Instruction Sheet. NOTE: A right side gearbox that is used on RWD models is assembled to the left side of the wheelchair for TDX SP models.
F Brake Lever Assembly sold as a pair that includes the right and left side Brake Levers, (2) ea. Brake Lever End Caps, (2) ea. Set Screws - see part #1168665 to order separately. Brake Lever End Cap can be sold separately. See part #1101725.
G Includes items 8-12.
H Not Shown. Brake Lever End Cap attaches to item #14 Brake Lever Assembly.
I Before placing an order, it is recommended to call Invacare's Technical Service Department at (1-800-832-4707) to verify if the Motor, SSD Gearbox or the Motor/SSD Gearbox Assembly is needed.
J Not Shown. Super Lube Grease is applied to the Gearbox Output Shaft.
K Not Shown. Use part #1168665 Screw, Set Socket Cup Point w/ Patch (M5 x .8 x 6mm) to hold item #13 Brake Lever in place.
L If a customer is replacing Motor/Gearbox Assemblies no longer available dated (3/16/11-8/29/17) replace in pairs to match.
