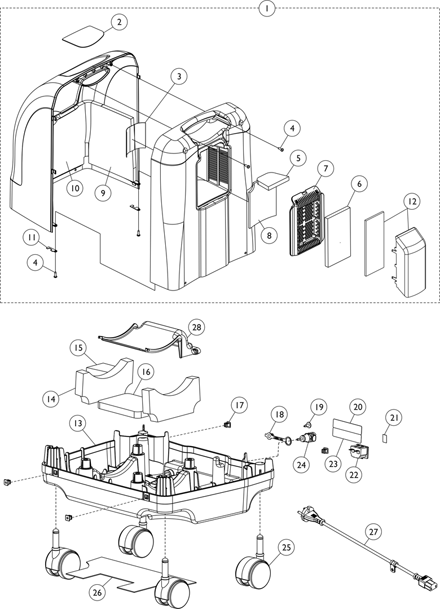

Cabinet & Base - Perfecto2 AW
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 2 | 1150725 | NLA - Label, Text, English | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 3 | 1137267 | Label, Diagnostic | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 4 | 1108810 | Screw, Hi-Lo Six Lobe Drive (#10-16 x 5/8") | 1 | 4 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 | 1153695 | Foam, Inlet - Ceiling | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 6 | 1143492 | Filter, Cabinet | 1 | 1 |
$11.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 7 | 1161831 | Door, Cabinet Access, Beige | 1 | 1 |
$11.00 |
E ,F |
Create/add to WishlistCreate/add to Wishlist |
| 8 | 1153700 | Foam, Inlet - Wall | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 9 | 1143465 | Foam, Shroud - Side | 1 | 2 |
$12.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 10 | 1143464 | Foam, Shroud - Front | 1 | 1 |
$16.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 11 | 1143550 | Clip, Retaining | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 12 | 1156532 | Inlet Air Scoop Assembly | 1 | 1 |
$19.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
| 13 | 1143451 | NLA - Tech Only - Base, Concentrator | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
| 14 | 1153706 | Foam, Damping - Base | 1 | 2 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 15 | 1154501 | Foam, Resonator | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 16 | 1153705 | Foam, Damping Outlet Base | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 17 | 2000360 | Grommet, Plastic | 1 | 4 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 18 | 1108211 | Cap, End, Dust, Green | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 19 | 1156530 | Screw, Phillips Round Washer Head Tap (8-18 x 1/2") | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 20 | 1153702 | NLA - Label, Spec (230V) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 21 | 1136841 | NLA - Label, Recycling | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 22 | 1105515 | NLA - Tech Only - Module, Inlet (15A/ 250 VAC) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 23 | 1143250 | Label, European Rep Address | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 24 | 1104151 | Fitting, Hose Barb with Nut (1/8") | 1 | 1 |
$27.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 25 | 1110426 | Caster Assembly (2") | 1 | 4 |
$11.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 26 | 1153704 | Damper, Sound Base | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 27 | 1156533 | NLA - Tech Only - Power Cord Assembly w/ Clip | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 28 | 1143444 | NLA - Tech Only - Baffle, Exhaust | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes Cabinet and Items 2-11. This item is No Longer Available in the US. This item comes from China only. |
| B | Includes Inlet Foam and Scoop. |
| C | Includes Base Only. |
| D | Kit includes Northern Europe Operator's Manual, |
| E | Color was "Graphite" before 1/16/2009. |
| F | Cabinet Access Door was revised 10/16/09 to allow the Cabinet Filter to be assembled to the outside of the Cabinet Access Door. The Cabinet Access Door is backward compatible in the field for models manufactured before 10/16/09. |
