1
1179968

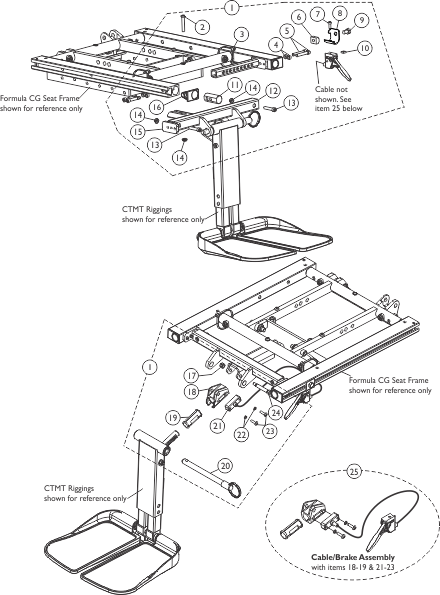

Item
Part/Kit Description
Qty/Pkg
Qty/Asbly
2
Screw, Socket Button Head (1/4-20 x 1-1/2")
1
1
3
Tie Wrap (11-1/2" L)
1
2
4
NLA - Spacer (1/4 x 3/8 x 3/16")
1
4
5
Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")
1
4
6
T-Nut (5/16-18)
1
1
7
NLA - Screw, Socket Head (#10-32 x 1/2")
1
1
8
Bracket, Release Handle Mounting, Black
1
1
9
NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")
1
1
10
Nut, Square (#10-32)
1
1
11
Plug, Support
1
2
12
Support, Footrest, Center Mount Rigging, Black (CGR) (16" - 19" D)
1
1
13
Screw, Socket Head (1/4-20 x 1-1/4")
1
2
14
Locknut (1/4-20)
1
3
15
Support, Seat Pan (16-24" Wide)
1
2
16
Cap, End, Side Rail, Black
1
2
17
Locknut (1/4-20)
1
1
18
Housing, Ratchet
1
1
19
Bearing, Glide
1
2
20
NLA - Pin, Quick Release (5" Long)
1
1
21
Cable/Brake Assembly
1
1
22
NLA - Washer, Lock (3/16 x 5/16 x 1/32")
1
2
23
Screw, Phillips Pan Head (#10-32 x 11/16")
1
2
24
Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)
1
1
Kit, CTMT-F Center Mount Riggings Mounting Hardware (CGR) (16" - 19" D)
1
1
$383.00
