Electronic Components

Print this page

Electronic Components

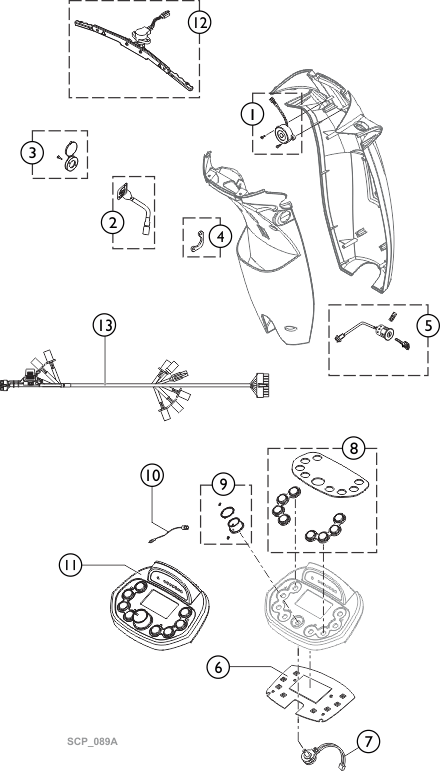

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1506153	Buzzer	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1523543	Charger Port	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1523534	Cover, Charger Port	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1523544	Bracket, Charger-Inlett	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1505451	Ignition, Key Cylinder (Standard)	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1608208	P.C. Board LCD	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1505462	Variable Resistor, Complete (30.0KO)	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1637215	Display cover & rubber keys (LCD Display)	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1608207	Knob, Speed control	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1608204	Temperature sensor	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1608185	Steering Upper Assembly LCD	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1608200	Wig Wag, cpl.	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1608212	Wire harness - Pro	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1608229	Wire harness - Alpine+ & Ultra	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1521577	Fuse (10 Amp)	0	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not Shown

Catalog Literature

Parts Books for Invacare® Comet PRO/ ULTRA
