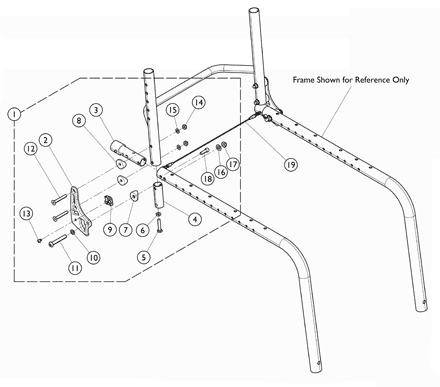

Backrest Mounting Hardware - No Arms or One Arm

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1172685

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Bracket, Back, Black - Right	1	1
2	Bracket, Back, Black - Left	1	1
3	Insert, Backstop	1	2
4	Insert, Cane, Rear	1	2
5	Screw, Hex (1/4-28 x 1-1/4")	1	2
6	Nut, Hex, Jam (1/4-28)	1	2
7	Spacer, Coved (3/4 x 1 x 1/2")	1	2
8	Spacer, Coved (1/4 x 1 x 9/16")	1	4
9	Square, Adjustment	1	2
10	Washer, Nylon (5/16 x 17/32 x 1/32")	1	2
11	Screw, Socket Button Head (5/16-18 x 2")	1	2
12	Screw, Socket, Flat Head, (1/4-28 x 1-3/4")	1	4
13	Screw, Socket, Button Head w/ Patch (10-32 x 1/4")	1	2
14	Locknut (1/4-28)	1	4
15	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	4
16	Washer, Steel (21/64 x 5/8 x 3/64")	1	2
17	Locknut (5/16-18)	1	2
18	NLA - Screw, Socket Head, Cap (1/4-28 x 3/4")	1	2

NLA - Kit, Hardware, Backrest Mounting w/o Arms

N/A

Create/add to Wishlist

1159762

NLA - Cord, Back Release (12" W)

N/A

Create/add to Wishlist

1159763

NLA - Cord, Back Release (13" W)

N/A

Create/add to Wishlist

1159764

NLA - Cord, Back Release (14" W)

N/A

Create/add to Wishlist

1159765

NLA - Cord, Back Release (15" W)

N/A

Create/add to Wishlist

1159766

NLA - Cord, Back Release (16" W)

N/A

Create/add to Wishlist

1159767

NLA - Cord, Back Release (17" W)

N/A

Create/add to Wishlist

1159768

NLA - Cord, Back Release (18" W)

N/A

Create/add to Wishlist

1159769

NLA - Cord, Back Release (19" W)

N/A

Create/add to Wishlist

1159789

NLA - Cord, Back Release (20" W)

N/A

Create/add to Wishlist

1165867

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Pin, Plunger	1	1
	Spring, Pin, Plunger (1/4 x 13/16 x .020)	1	1
	Pin, Plunger	1	1
	Spring, Pin, Plunger (1/4 x 13/16 x .020)	1	1
27	Pin, Plunger	1	1
28	Spring, Pin, Plunger (1/4 x 13/16 x .020)	1	1
26	Pin, Plunger	1	1
27	Spring, Pin, Plunger (1/4 x 13/16 x .020)	1	1

Kit, Plunger Pin w/ Spring

Create/add to Wishlist

See Chart

Added to Cart

Color		Black		Silver		Blue		Red
Right		1167083- NLA		1167081 MSRP: $31.00		1167084- NLA		1167082- NLA
Left		1167087 MSRP: $31.00		1167086- NLA		1167088		1167085

Create/add to Wishlist

Item 2. Back Brackets - Right/Left

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 - 18.
B	The Back Release Cord includes a Split Ring on each end but DOES NOT INCLUDE the Plunger Pins or Springs. It is recommended when ordering a new Back Release Cord, 1165867 (Kit, Plunger Pin w/ Spring) be ordered also.
