Non-Tapered Frame 75 and 85 Degree Angle

Tapered Frame 75 Degree Tapered 85 Degree Tapered

Footrest On-Center Dimension (See Illustration) 75 and 85 Degree Angle

Footrest On-Center Dimension (See Illustration) 75, 85 Degree Angle Tapered

Plastic Footrest Cover Non-Tapered

Plastic Footrest Cover Tapered

Chair Width

Part Number

Dimension (Inches)

Part Number

13" W

1172746

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Lock (M5 x .8)	1	2
Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
Washer, Locking Split (#10)	1	2
Spacer, Footrest	1	2
Tube, Footrest (13" W)	1	1

N/A

11-7/8"

N/A

1179175

N/A

14" W

1172747

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Lock (M5 x .8)	1	2
Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
Washer, Locking Split (#10)	1	2
Spacer, Footrest	1	2
Tube, Footrest (14" W)	1	1

N/A

12-7/8"

N/A

1179176

N/A

15" W

1172748

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Lock (M5 x .8)	1	2
Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
Washer, Locking Split (#10)	1	2
Spacer, Footrest	1	2
Tube, Footrest (15" W)	1	1

N/A

13-7/8"

N/A

1179177

N/A

16" W

1172749

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Lock (M5 x .8)	1	2
Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
Washer, Locking Split (#10)	1	2
Spacer, Footrest	1	2
Tube, Footrest (16" W)	1	1

1172747

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Lock (M5 x .8)	1	2
Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
Washer, Locking Split (#10)	1	2
Spacer, Footrest	1	2
Tube, Footrest (14" W)	1	1

14-7/8"

12-7/8"

1179178

1179176

17" W

1172750

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Lock (M5 x .8)	1	2
Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
Washer, Locking Split (#10)	1	2
Spacer, Footrest	1	2
Tube, Footrest (17" W)	1	1

1172748

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Lock (M5 x .8)	1	2
Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
Washer, Locking Split (#10)	1	2
Spacer, Footrest	1	2
Tube, Footrest (15" W)	1	1

15-7/8"

13-7/8"

1179179

1179177

18" W

1172751

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Lock (M5 x .8)	1	2
Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
Washer, Locking Split (#10)	1	2
Spacer, Footrest	1	2
Tube, Footrest (18" W)	1	1

1172749

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Lock (M5 x .8)	1	2
Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
Washer, Locking Split (#10)	1	2
Spacer, Footrest	1	2
Tube, Footrest (16" W)	1	1

16-7/8"

14-7/8"

1179180

1179178

19" W

1172752

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Lock (M5 x .8)	1	2
Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
Washer, Locking Split (#10)	1	2
Spacer, Footrest	1	2
Tube, Footrest (19" W)	1	1

N/A

17-7/8"

N/A

1179181

N/A

20" W

1172753

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Lock (M5 x .8)	1	2
Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
Washer, Locking Split (#10)	1	2
Spacer, Footrest	1	2
Tube, Footrest (20" W)	1	1

N/A

18-7/8"

N/A

1179182

N/A

Create/add to Wishlist

Footrest Kit Reference Chart (CRFTFR)

N/A

Create/add to Wishlist

1

1172746

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Tube, Footrest (13" W)	1	1
3	Spacer, Footrest	1	2
4	Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
5	Nut, Lock (M5 x .8)	1	2
6	Washer, Locking Split (#10)	1	2

Kit, Footrest (13" W)

1

A

Create/add to Wishlist

1

1172747

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Tube, Footrest (14" W)	1	1
3	Spacer, Footrest	1	2
4	Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
5	Nut, Lock (M5 x .8)	1	2
6	Washer, Locking Split (#10)	1	2

Kit, Footrest (14" W)

1

A

Create/add to Wishlist

1

1172748

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Tube, Footrest (15" W)	1	1
3	Spacer, Footrest	1	2
4	Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
5	Nut, Lock (M5 x .8)	1	2
6	Washer, Locking Split (#10)	1	2

Kit, Footrest (15" W)

1

A

Create/add to Wishlist

1

1172749

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	Washer, Locking Split (#10)	1	2
2	Tube, Footrest (16" W)	1	1
3	Spacer, Footrest	1	2
4	Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
5	Nut, Lock (M5 x .8)	1	2

Kit, Footrest (16" W)

1

A

Create/add to Wishlist

1

1172750

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Tube, Footrest (17" W)	1	1
3	Spacer, Footrest	1	2
4	Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
5	Nut, Lock (M5 x .8)	1	2
6	Washer, Locking Split (#10)	1	2

Kit, Footrest (17" W)

1

A

Create/add to Wishlist

1

1172751

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Tube, Footrest (18" W)	1	1
3	Spacer, Footrest	1	2
4	Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
5	Nut, Lock (M5 x .8)	1	2
6	Washer, Locking Split (#10)	1	2

Kit, Footrest (18" W)

1

A

Create/add to Wishlist

1

1172752

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Tube, Footrest (19" W)	1	1
3	Spacer, Footrest	1	2
4	Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
5	Nut, Lock (M5 x .8)	1	2
6	Washer, Locking Split (#10)	1	2

Kit, Footrest (19" W)

1

A

Create/add to Wishlist

1

1172753

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Tube, Footrest (20" W)	1	1
3	Spacer, Footrest	1	2
4	Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
5	Nut, Lock (M5 x .8)	1	2
6	Washer, Locking Split (#10)	1	2

Kit, Footrest (20" W)

1

A

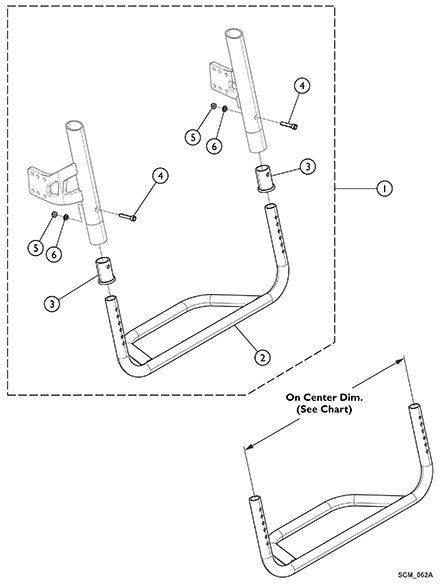

Front Riggings - Footrest and Hardware (CRFTFR)
