Actuator Motor - Smart - Tilt & Mounting Hardware (After 4/1/13)

Print this page

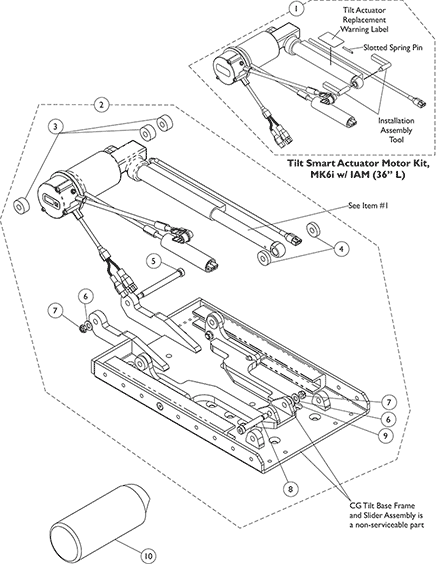

Tilt Smart Actuator Motor and Mounting Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1186171

Kit, Tilt Smart Actuator Motor, MK6i w/ IAM (36" L)

$2,093.00

A ,C ,D

Create/add to Wishlist

1180313

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Spacer (3/8 x 1 x 1/2")	1	3
5	NLA - Washer, Nylon (13/32 x 1 x 1/4")	1	2
6	Screw, Shoulder Hex Socket Head (3/8" x 3-1/2", 5/16-18)	1	1
7	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
8	Locknut (5/16-18)	1	2
9	Screw, Shoulder Hex Socket Head (3/8 x 1-3/4", 5/16-18)	1	1
10	Washer, Plain (1/4 x 9/16 x 1/16")	1	1
	Instruction Sheet, Tilt Actuator Motor Installation	1	1
4	Spacer (3/8 x 1 x 1/2")	1	3
5	NLA - Washer, Nylon (13/32 x 1 x 1/4")	1	2
6	Screw, Shoulder Hex Socket Head (3/8" x 3-1/2", 5/16-18)	1	1
7	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
8	Locknut (5/16-18)	1	2
9	Screw, Shoulder Hex Socket Head (3/8 x 1-3/4", 5/16-18)	1	1
10	Washer, Plain (1/4 x 9/16 x 1/16")	1	1
	Instruction Sheet, Tilt Actuator Motor Installation	1	1
4	Spacer (3/8 x 1 x 1/2")	1	3
5	NLA - Washer, Nylon (13/32 x 1 x 1/4")	1	2
6	Screw, Shoulder Hex Socket Head (3/8" x 3-1/2", 5/16-18)	1	1
7	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
8	Locknut (5/16-18)	1	2
9	Screw, Shoulder Hex Socket Head (3/8 x 1-3/4", 5/16-18)	1	1
10	Washer, Plain (1/4 x 9/16 x 1/16")	1	1
	Instruction Sheet, Tilt Actuator Motor Installation	1	1
3	Spacer (3/8 x 1 x 1/2")	1	3
4	NLA - Washer, Nylon (13/32 x 1 x 1/4")	1	2
5	Screw, Shoulder Hex Socket Head (3/8" x 3-1/2", 5/16-18)	1	1
6	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
7	Locknut (5/16-18)	1	2
8	Screw, Shoulder Hex Socket Head (3/8 x 1-3/4", 5/16-18)	1	1
9	Washer, Plain (1/4 x 9/16 x 1/16")	1	1
	Instruction Sheet, Tilt Actuator Motor Installation	1	1
5	Screw, Shoulder Hex Socket Head (3/8" x 3-1/2", 5/16-18)	1	1
6	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
7	Locknut (5/16-18)	1	2
8	Screw, Shoulder Hex Socket Head (3/8 x 1-3/4", 5/16-18)	1	1
9	Washer, Plain (1/4 x 9/16 x 1/16")	1	1
	Instruction Sheet, Tilt Actuator Motor Installation	1	1
4	Spacer (3/8 x 1 x 1/2")	1	3
5	NLA - Washer, Nylon (13/32 x 1 x 1/4")	1	2
6	Screw, Shoulder Hex Socket Head (3/8" x 3-1/2", 5/16-18)	1	1
7	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
8	Locknut (5/16-18)	1	2
9	Screw, Shoulder Hex Socket Head (3/8 x 1-3/4", 5/16-18)	1	1
10	Washer, Plain (1/4 x 9/16 x 1/16")	1	1
	Instruction Sheet, Tilt Actuator Motor Installation	1	1
3	Spacer (3/8 x 1 x 1/2")	1	3
4	NLA - Washer, Nylon (13/32 x 1 x 1/4")	1	2

Kit, Tilt Actuator Motor Mounting Hardware

$18.00

Create/add to Wishlist

1159388

Cover, Tilt Smart Actuator Motor

$27.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes the Tilt Smart Actuator Motor, Bushings, Installation Assembly Tool, Slotted Spring Pin, Silicon Lubricant, Warning Label, Instructions and Integrated Actuator Module (IAM) attached to the motor. Components are not sold separately.
B	Includes items 3-9 and Installation Instruction Sheet.
C	Due to NEW Installation procedures, refer to the Tilt Actuator Replacement Instructions included with the Kit for assistance.
D	Includes Part #1190604 Supplemental Power Wheelchair Warnings/Wear and Tear Information Owner's Manual.

Catalog Literature

Parts Books for Formula™CG Powered Seating and Front Riggings CGT/CGTE/CGTR/CGTRE
