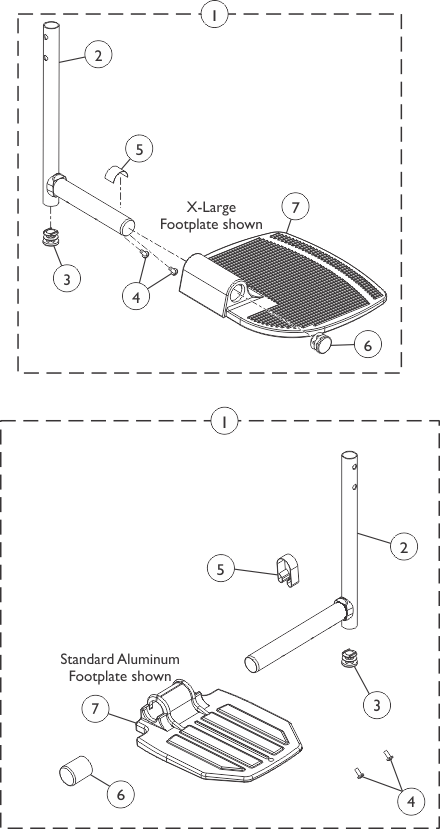

Front Riggings - Pivot/Slide Tube with Footplate - GT93H and T93H Series Footrest

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1111277

Pivot/Slide Tube w/ Plug Button, Footrest, Black

$33.00

Create/add to Wishlist

1111278

NLA - Pivot/Slide Tube w/ Plug Button, Footrest, Chrome

N/A

Create/add to Wishlist

1027097

Plug Button, Black (3/4")

$7.50

Create/add to Wishlist

40120X001

Screw, Phillips Pan Head (#8-32 x 3/8")

$8.00

Create/add to Wishlist

1006981

Spring, Tension

$10.00

Create/add to Wishlist

1036123

Spring, Leaf

$12.00

B ,E

Create/add to Wishlist

1016346

Cap, End, Tube, Black (7/8")

$8.00

Create/add to Wishlist

1027095

Plug Button, Black (7/8")

$9.20

Create/add to Wishlist

1015178

Footplate, Composite, Black (6" W x 7-53/64" L)

$75.00

Create/add to Wishlist

1192674

Footplate, Composite, Black (6" W x 7-53/64" L)

$51.00

Create/add to Wishlist

44200X059

Footplate, Aluminum, Small, Black (6-3/4" W x 6" L)

$51.00

Create/add to Wishlist

44200X027

Footplate, Aluminum, Medium, Black (7-3/4" W x 6" L)

$51.00

Create/add to Wishlist

44200X025

Footplate, Aluminum, Extra Large, Black - Right (8" W x 8-1/2" L)

$77.00

Create/add to Wishlist

44200X026

Footplate, Aluminum, Extra Large, Black - Left (8" W x 8-1/2" L)

$77.00

Create/add to Wishlist

See Chart

Added to Cart

Model Number

Chair Width

Footplate Style

Frame Side

Part Number

T93HSA T93HA - Black

14-15"

Aluminium

Right

1110361

MSRP: $94.00

T93HSA T93HA - Black

14-15"

Aluminium

Left

1110362

T93HSA T93HA - Chrome

14-15"

Aluminium

Right

1110363- NLA

T93HSA T93HA - Chrome

14-15"

Aluminium

Left

1110364- NLA

GT93HA/ T93HA T93HAB Black

16-22"

Aluminium

Right

1111285

MSRP: $94.00

GT93HA/ T93HA T93HAB Black

16-22"

Aluminium

Left

1111286

MSRP: $94.00

T93HA T93HAB - Black

16-22"

Aluminium

Right

Note-A

1111287- NLA

T93HA T93HAB - Black

16-22"

Aluminium

Left

Note-A

1111288- NLA

T93HA T93HAB - Chrome

14-15"

Extra Large

Right

1110346- NLA

T93HA T93HAB - Chrome

14-15"

Extra Large

Left

1110347- NLA

T93HA - Black

16-22"

Extra Large

Right

1110344

MSRP: $101.00

T93HA - Black

16-22"

Extra Large

Left

1110345

MSRP: $101.00

T93HC T93HCB - Black

16-22"

Composite

Right

1111289

MSRP: $94.00

T93HC T93HCB - Black

16-22"

Composite

Left

1111290

MSRP: $94.00

GT93HC - Black

16-22"

Composite

Right

1194329

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Pan Head (#8-32 x 3/8")	1	2
Footplate, Composite, Black (6" W x 7-53/64" L)	1	1
Cap, End, Tube, Black (7/8")	1	1
Plug Button, Black (3/4")	1	1
Spring, Tension	1	1
Pivot/Slide Tube w/ Plug Button, Footrest, Black	1	1

MSRP: $44.00

GT93HC - Black

16-22"

Composite

Left

1194330

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Pan Head (#8-32 x 3/8")	1	2
Footplate, Composite, Black (6" W x 7-53/64" L)	1	1
Cap, End, Tube, Black (7/8")	1	1
Plug Button, Black (3/4")	1	1
Spring, Tension	1	1
Pivot/Slide Tube w/ Plug Button, Footrest, Black	1	1

MSRP: $31.00

T93HC T93HCB - Chrome

16-22"

Composite

Right

1194329

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Pan Head (#8-32 x 3/8")	1	2
Footplate, Composite, Black (6" W x 7-53/64" L)	1	1
Cap, End, Tube, Black (7/8")	1	1
Plug Button, Black (3/4")	1	1
Spring, Tension	1	1
Pivot/Slide Tube w/ Plug Button, Footrest, Black	1	1

MSRP: $44.00

T93HC T93HCB - Chrome

16-22"

Composite

Left

1194329

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Pan Head (#8-32 x 3/8")	1	2
Footplate, Composite, Black (6" W x 7-53/64" L)	1	1
Cap, End, Tube, Black (7/8")	1	1
Plug Button, Black (3/4")	1	1
Spring, Tension	1	1
Pivot/Slide Tube w/ Plug Button, Footrest, Black	1	1

MSRP: $44.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	NOTE: Part numbers 1111287 and 1111288 changed from Chrome Pivot/Slide Tube to Black as of 5/16/19

Footrest Pivot Slide Tube with Footplate

N/A

See Chart

Added to Cart

Style	Part Number	Quantity per Package	Quantity Per Footrest	Quantity Per Legrest
Spring Button Hardware Kit	Note-A 1188335 MSRP: $12.00	2	2	4
Bolt Through Hardware Kit	Note-A 1101776 MSRP: $21.00	2	2	2
Tool Kit	Note-B 1058407 MSRP: $14.00	1	N/A	N/A

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Kit includes 2 ea. Double Spring Buttons
B	Kit includes allen wrench, key, and open end wrench. The Bolt Thru Hardware uses the Tool Kit for installation.

Bolt Through and Spring Button Kits

N/A

Assembly Part Notes

Note Code	Definition
A	Includes items 2-7.
B	For use on extra large footplate.
C	Not Shown.
D	Use with Standard Footplates.
E	Use one or more leaf springs per assembly as required such that footplate may be moved by hand to the up-right position and remain in place.
F	Used for GT93HC model Front Riggings and T93HC model Front Riggings as of 5/16/19.
