Frames and Hardware - Permanent Arm

Print this page

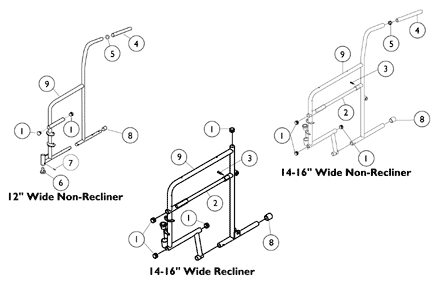

Permanent Arm Frames and Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1027095	Plug Button, Black (7/8")	1	3	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	47453X019	Tube, Insert	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	21243X000	NLA - Screw, Phillips Pan Head (#6-20 x 3/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1006229	Grip, Foam (8")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	40144X000	NLA - Plug Button (7/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	57768X020	NLA - Sleeve, Caster	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1016682	Bearing, Sleeve Caster	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	40121X000	NLA - Screw, Phillips Pan Head (#6-32 x 3/16")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	15680X012	Collar, Anti-Rattle (7/8")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1015878	NLA - Frame w/o Hardware, Chrome - Right	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1015879	NLA - Frame w/o Hardware, Chrome - Left	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1015876	NLA - Frame w/o Hardware, Chrome - Right	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1015877	NLA - Frame w/o Hardware, Chrome - Left	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1016459	NLA - Frame w/o Hardware - Right	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1016460	NLA - Frame w/o Hardware - Left	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Due to product improvement when replacing 57668X020 sleeve, a pair of no. 1016682 new Caster sleeves should be ordered.
B	12" Wide, Non-Recliner
C	14-16" Wide, Non-Recliner
D	14-16" Wide, Recliner

Catalog Literature

Parts Books for Youthmobile 3000
