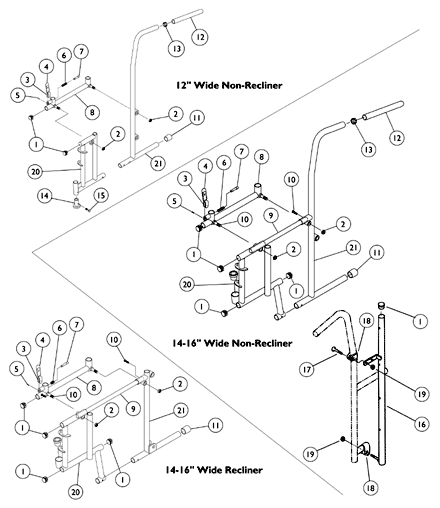

Frames and Hardware - Removable Arm

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1027095	Plug Button, Black (7/8")	1	4	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	60355X000	NLA - Locknut (3/8-24)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	04747X024	NLA - Handle, Lock	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1006490	Tip, Plastic, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	40187X002	NLA - Pin, Roll (5/64 x 1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	47471X021	NLA - Spring, Compression (3/8 x 9/16 x 3/64")	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	47471X074	Spring, Arm Lock	1	1	$8.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	47471X023	Pin, Locking	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	47471X068	Pin, Locking	1	1	$8.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	04702X148	NLA - Socket, Arm - Right (12" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	04702X149	NLA - Socket, Arm - Left (12" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	04702X003	NLA - Socket, Arm - Right (14 - 16" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	04702X004	NLA - Socket, Arm - Left (14 - 16" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	47453X019	Tube, Insert	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	21243X000	NLA - Screw, Phillips Pan Head (#6-20 x 3/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	15680X012	Collar, Anti-Rattle (7/8")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1006229	Grip, Foam (8")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	40144X000	NLA - Plug Button (7/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	57768X020	NLA - Sleeve, Caster	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1016682	Bearing, Sleeve Caster	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	40121X000	NLA - Screw, Phillips Pan Head (#6-32 x 3/16")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	04562X011	NLA - Tube, Back - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	04562X012	NLA - Tube, Back - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	11232X009	Bolt, Lug (5/16-24 x 1-3/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	47311X001	NLA - Clamp (7/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	7930363	NLA - Package, Locknut (5/16"-24)	25	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	1015872	NLA - Frame, Front, Chrome - Right (12" W)	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	1015873	NLA - Frame, Front, Chrome - Left (12" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	1015866	NLA - Frame, Front, Chrome - Right (14 - 16" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	1015867	NLA - Frame, Front, Chrome - Left (14 - 16" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1015868	NLA - Frame, Non-Reclining, Chrome - Rear/ Right (12" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1015869	NLA - Frame, Non-Reclining, Chrome - Rear/ Left (12" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1015864	Frame, Non-Reclining, Chrome - Rear/ Right (14 - 16" W)	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1015865	Frame, Non-Reclining, Chrome - Rear/ Left (14 - 16" W)	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	04560X145	NLA - Frame, Reclining - Rear - Right/ Left (14 - 16" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Due to product improvement when replacing 57668X020 sleeve, a pair of no. 1016682 new Caster sleeves should be ordered.
B	Before 9/93
C	After 8/93

Catalog Literature

Parts Books for Youthmobile 3000
