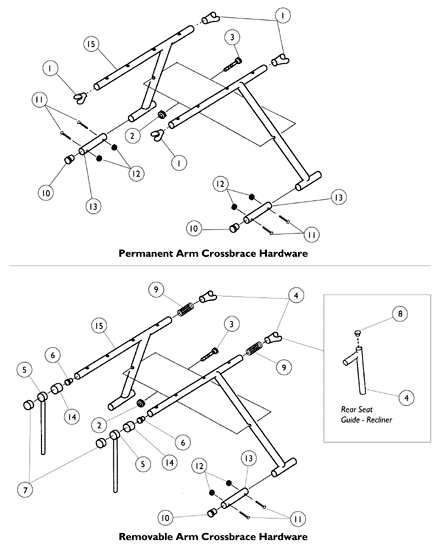

Crossbraces and Hardware

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1058416	Guide, Seat, Front, Black	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	7930363	NLA - Package, Locknut (5/16"-24)	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	40317X001	Screw, Hex Head (5/16-24 x 2-3/4")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	04723X003	NLA - Guide, Seat, Chrome	1	2	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	04555X006	NLA - Guide, Seat - Rear (After 5/89)	1	2	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	04555X004	NLA - Guide, Seat - Front (12" W)	1	2	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	04555X007	NLA - Guide, Seat, Chrome - Front (After 5/89)	1	2	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1027095	Plug Button, Black (7/8")	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	47397X024	Spacer (7/8 x 1 x 7/16")	1	2		C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	47397X022	Spacer (7/8 x 1 x 7/8")	1	2		D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	40144X001	NLA - Plug Button, Chrome (3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	47236X001	Spring, Tension	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1027097	Plug Button, Black (3/4")	1	2	$7.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	7930361	NLA - Package, Screw, Phillips Round Head (#10-32 x 1-1/8")	25	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	7930365	NLA - Locknut (#10-32)	25	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	42301X011	NLA - Tube, Insert	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	47397X020	Spacer (7/8 x 1 x 1-3/8")	1	2		E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	04354X038	NLA - Crossbrace w/o Hardware - Right (12" W)	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	04354X039	NLA - Crossbrace w/o Hardware - Left (12" W)	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	04354X048	NLA - Crossbrace w/o Hardware - Right (14 - 16" W)	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	04354X049	NLA - Crossbrace w/o Hardware - Left (14 - 16" W)	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Non-Recliner
B	Recliner
C	12" Wide Chairs
D	14-16" Wide Chairs
E	12" Wide Chairs Only

Catalog Literature

Parts Books for Youthmobile 3000
