Ultra Low Maxx-"ELOW" - Seat Tilt/Seat Tilt w/ Elevate, Main System Mounting and Interface Hardware (ULMT/ ULMTR/AELM)

Print this page

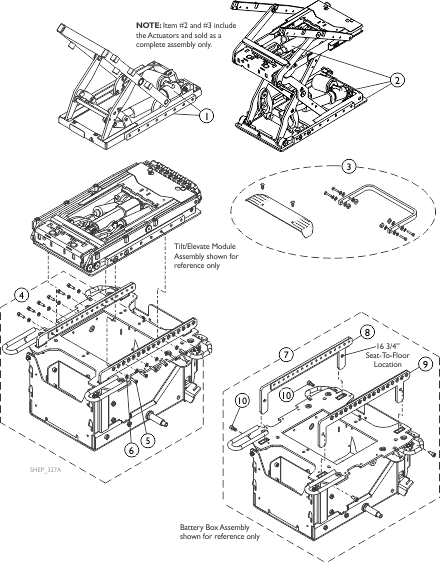

Ultra Low Maxx - Seat Tilt/Seat Tilt w/ Elevate

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

60102606

Kit, Tilt Module Assembly w/ Actuator

$1,140.00

Create/add to Wishlist

60103390

Kit, Tilt/Elevate Module Assembly w/ Actuators

$6,167.00

Create/add to Wishlist

60102635

Kit, Bumper and Rear Wiring Cover w/ Mounting Hardware, Elevate

$93.00

Create/add to Wishlist

60124362

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Socket Head Cap (M6 x 1 x 20mm)	1	12
3	Washer, Split Lock, Black Zinc (M6)	1	12
	Sheet, Insert Parts Service	1	1
3	Screw, Socket Head Cap (M6 x 1 x 20mm)	1	12
4	Washer, Split Lock, Black Zinc (M6)	1	12
	Sheet, Insert Parts Service	1	1
5	Screw, Socket Head Cap (M6 x 1 x 20mm)	1	12
6	Washer, Split Lock, Black Zinc (M6)	1	12
	Sheet, Insert Parts Service	1	1
3	Screw, Socket Head Cap (M6 x 1 x 20mm)	1	12
4	Washer, Split Lock, Black Zinc (M6)	1	12
	Sheet, Insert Parts Service	1	1

Kit, Seat Mounting Hardware, Low

$31.00

Create/add to Wishlist

60124359

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	Bracket, Seat Mounting, Low - Right	1	1
6	Bracket, Seat Mounting, Low - Left	1	1
7	Screw, Socket Head w/ Patch (M8 x 1.25 x 25mm)	1	4
	Sheet, Insert Parts Service	1	1
6	Bracket, Seat Mounting, Low - Right	1	1
7	Bracket, Seat Mounting, Low - Left	1	1
8	Screw, Socket Head w/ Patch (M8 x 1.25 x 25mm)	1	4
	Sheet, Insert Parts Service	1	1
8	Bracket, Seat Mounting, Low - Right	1	1
9	Bracket, Seat Mounting, Low - Left	1	1
10	Screw, Socket Head Cap w/ Patch (M8 x 1.25 x 16mm)	1	4
	Sheet, Insert Parts Service	1	1
6	Bracket, Seat Mounting, Low - Right	1	1
7	Bracket, Seat Mounting, Low - Left	1	1
8	Screw, Socket Head Cap w/ Patch (M8 x 1.25 x 16mm)	1	4
	Sheet, Insert Parts Service	1	1

Kit, Seat Mounting Bracket Hardware, Low

$167.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Kit is sold as a complete assembly only.
B	Includes items 5 and 6
C	Includes items 8-10

Catalog Literature

Parts Books for AVIVA® FX Models: IFX-20R IFX-20SP IFX-20MP Power Wheelchair
