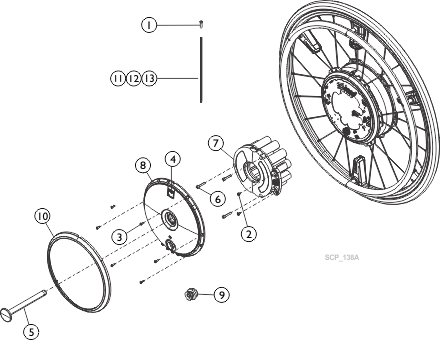

Wheel

Print this page

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1467215	Nipple: brass Polyax 14mm for 2mm spoke, silver	1	0	$4.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1467526	Talow drop screw Torx M 3 x 5 - 8.8	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1467743	ISO 7380 - M 3 x 8 - 8.8 - ISR vz	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1490801	Alber Logo 17 x 17mm	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1593669	Stub axle e-motion M25 with signal ring	1	0	$155.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1565957	Cylinder-head screw (DIN 912) ISO 4762 M4x22-8.8 A2K	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1591781	Battery (Corepack) M25 4,3Ah (red)	1	0	$854.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1592381	Cover mounted	1	0	$83.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1592420	Charging connector	1	0	$154.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1592588	Ring mounted	1	0	$75.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1592647	Spoke set M25 24 „consisting of 5 spokes + nipple	1	0	$52.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1592648	Spoke set M25 25“ 2,0mm 5 spokes + nipples	1	0	$39.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1592827	Spoke set M25 22“ 2,0mm	1	0	$49.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Catalog Literature

Parts Books for e-motion M25 Power Assist for Wheelchairs
