Anti-Tippers with Jack-Up Function since 2020

Print this page

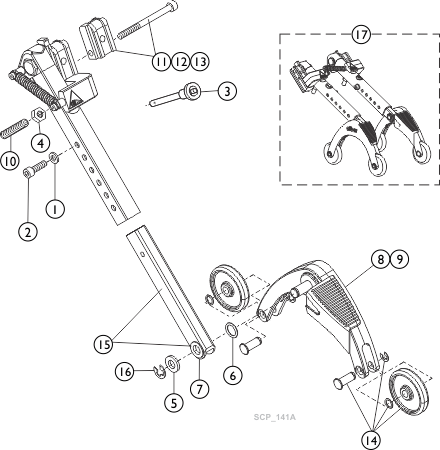

Anti-Tippers with Jack-Up Function since 2020

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1456183	Washer DIN 125 - A 6,4	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1456233	Cylinder head screw M 6 x 20	1	0	$2.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1456406	Quickpin quick release bolt	1	0	$64.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1459636	Hexagon nut ISO 4032 - M8 vz	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1459944	Washer DIN 988 - 10 x 16 x 1	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1463698	DIN 988 - 10 x 16 x 0,3 - St	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1467811	Friction bearing Igus form F GFM-1212-035	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1467845	Support angle right for anti-tippers	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1467846	Support angle left for anti-tippers	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1467943	Threaded pin M 8 x 45 DIN 913 - 45 H	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1489219	Hardware set A for anti-tippers small version 2 x 15mm shoe incl. screws	1	0	$95.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1489220	Hardware set for anti-tippers expanded version 4 x 15mm shoe incl. screws	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1489221	Hardware set for anti-tippers expanded version 4 x 12mm shoe inc. screws	1	0	$135.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1489365	Wheel for anti-tippers complete	1	0	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1489366	Slide rod anti-tippers mounted	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1519603	Securing disk DIN 6799-Gr.8 vz	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1593206	Anti-tippers with jack-up function (Pair) black	2	0	$745.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Catalog Literature

Parts Books for e-motion M25 Power Assist for Wheelchairs
