Wheel Lock - Recliner

Print this page

Wheel Lock - Recliner

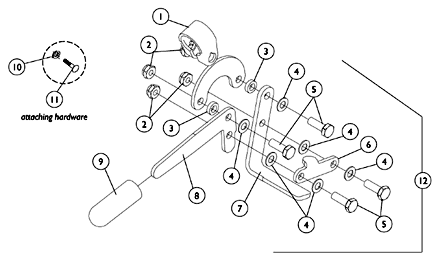

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	04512X113	NLA - Bracket, Mounting, Chrome - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	04512X114	NLA - Bracket, Mounting, Chrome - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	7930367	NLA - Locknut (1/4-28)	25	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	40157X004	Spacer, Nylon (1/4 x 7/16 x 1/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	7930357	NLA - Washer, Nylon (1/4 x 1/2 x 1/32")	25	6	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	60274X012	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	47559X025	NLA - Link, Chrome - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	47559X026	NLA - Link, Chrome - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1015443	NLA - Shoe	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1023296	NLA - Handle, Wheel Lock, Chrome	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	47376x024	Tip, Rubber Wheel Lock Handle, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1107321	Nut, Low Cap (5/16"-24)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	11232X009	Bolt, Lug (5/16-24 x 1-3/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1021068	Wheel Lock Assembly w/o Hardware, Black - Right	1	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1021069	Wheel Lock Assembly w/o Hardware, Black - Left	1	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Pull to Lock (shown), Includes Items 1-9. Chrome is No Longer Available. Order right and left side in Black to match.

Catalog Literature

Parts Books for Youthmobile 3000
