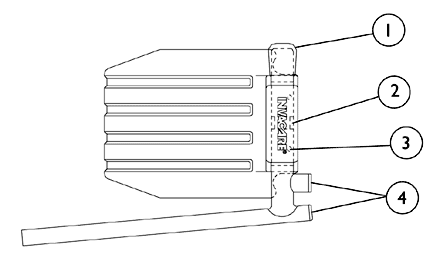

Front Riggings - Pivot Slide Tube with Footplate

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1016346

Cap, End, Tube, Black (7/8")

$8.00

Create/add to Wishlist

1006981

Spring, Tension

$10.00

Create/add to Wishlist

7930354

NLA - Package, Phillips Head Screw (#8-32 x 3/8")

N/A

Create/add to Wishlist

1027097

Plug Button, Black (3/4")

$7.50

Create/add to Wishlist

See Chart

Added to Cart

Front Rigging	Chair Width	Support Assembly	Support Assembly	Aluminum Footplates	Pivot Slide Tube	Pivot Slide Tube	Pivot Slide Tube
.	.	Right	Left	.	Standard 9-1/2"	2" Longer 11-1/2"	4" Longer 13-1/2"
91	12"	1017535- NLA	1017536- NLA	44200X032- NLA	1041776- NLA	N/A	N/A
	14"	1018025- NLA	1018026- NLA	44200X059 MSRP: $51.00	1041776- NLA	N/A	N/A
	16"	1018023- NLA	1018024- NLA	44200X027 MSRP: $51.00	1041776- NLA	N/A	N/A
92	12"	1007280- NLA	1007281- NLA	44200X032- NLA	1041775- NLA	N/A	N/A
	14"	1007271- NLA	1007272- NLA	44200X059 MSRP: $51.00	1041775- NLA	N/A	N/A
	16"	1017237- NLA	1017238- NLA	44200X027 MSRP: $51.00	7500085- NLA	1086525- NLA	1086526- NLA
						1086527- NLA	1086528- NLA
93J	14"	1020232- NLA	1020233- NLA	44200X059 MSRP: $51.00	1041528- NLA	N/A	N/A
	16"	1017243- NLA	1017244- NLA	44200X027 MSRP: $51.00	1041528- NLA	1086486- NLA	1086487- NLA
						1086488- NLA	1086489- NLA
93M	12"	1007274- NLA	1007275- NLA	44200X032- NLA	1041528- NLA	N/A	N/A
	14"	1033506- NLA	1033507- NLA	44200X059 MSRP: $51.00	1041528- NLA	N/A	N/A
	16"	1017243- NLA	1017244- NLA	44200X027 MSRP: $51.00	1041528- NLA	1086486- NLA	1086487- NLA
						1086488- NLA	1086489- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Aluminum footplates on chairs built before 2/96 had a "Ball Burnish" finish. Footplates after 1/96 now have a black finish. When replacing 1 ball burnish footplate it is suggested that 2 new (black) footplates be ordered.

Pivot Slide Tube with Footplate

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Not Shown

Catalog Literature

Parts Books for Youthmobile 3000
