Accessories - Solid Folding Seat

Print this page

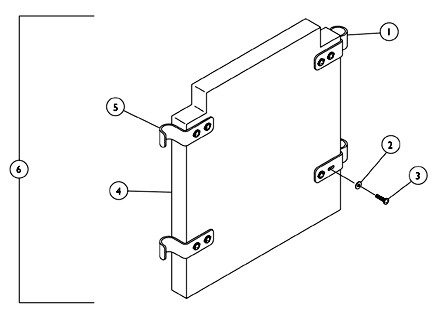

Solid Folding Seat

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1016766	Bracket, Hinge, Chrome	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1020225	NLA - Bracket, Hinge, Chrome (14" W Chair)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1013218	Washer (#10 Flat)	1	8	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	7930360	NLA - Package, Screw, Phillips Pan Head (#10-32 x 11/16")	25	8	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	8881020216	NLA - Upholstery, Solid Seat	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	8881020220	NLA - Upholstery, Solid Seat	1	1	N/A	A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	8881020227	NLA - Upholstery, Solid Seat	1	1	N/A	A ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1016767	NLA - Hook Bracket	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1020224	Hook Bracket, Hook (14" W)	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	8881036890	NLA - Solid Folding Seat Assembly	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	8881036891	NLA - Solid Folding Seat Assembly	1	1	N/A	A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	8881036892	NLA - Solid Folding Seat Assembly	1	1	N/A	A ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Specify upholstery color, see page titled "Packaging and Upholstery Colors"
B	12" Wide x 11" Deep
C	14" Wide x 12" Deep
D	16" Wide x 14" Deep
