Elevating Seat - Elevating Acuator - Sensors & Seat Support Tray

Print this page

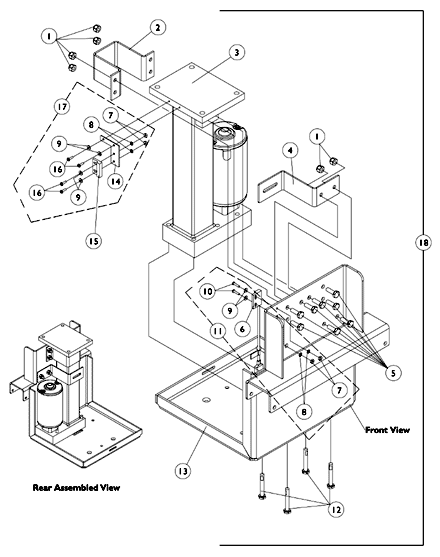

Elevating Actuator, Sensors and Seat Support Tray for Elevating Seat

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	7930323	NLA - Package, Locknut (1/4-20)	25	6	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1108436	NLA - Bracket, Actuator Support, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1109334	NLA - Actuator Motor Assembly, Elevate	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1108435	NLA - Bracket, Battery Strap, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	7930326	NLA - Package, Screw, Hex Head (1/4-20 x 3/4")	25	8	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1105715	NLA - Sensor, Proximity Switch	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1005889	NLA - Locknut (#4-40)	1	4			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1008525	NLA - Washer, Internal Tooth Lock (#4-40)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1011011	NLA - Washer, Plain (1/8 x 5/16 x 1/32")	1	6	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	7930318	NLA - Package, Screw, Phillips Pan Head (#4-40 x 1/2")	25	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1108774	NLA - Hardware, Proximity Switch Sensor and Mounting	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1088898	NLA - Screw, Hex Head w/ Patch (1/4-20 x 1-3/4")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1106520	NLA - Tray, Seat Support	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1106518	NLA - Bracket, Actuator Switch Sensor, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1024001	Sensor, Actuator Switch	1	1	$21.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1027704	NLA - Screw, Phillips Pan Head (#4-40 x 3/8")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1108773	NLA - Hardware, Actuator Switch Sensor and Mounting	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1108768	NLA - Elevating Actuator, Sensors and Seat Support Tray Assembly	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 6-10
B	Includes items 7-9, 14 and 16

Catalog Literature

Parts Books for Pronto® R2™, Ranger II™ MWD for WSBT (After 2/29/2000)
