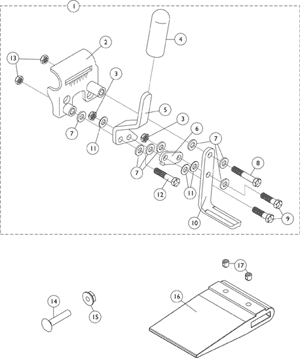

Wheel Locks - Link-Pivot Style, Removable Arm - Hemi
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 | 1045850 | NLA - Wheel Lock Assembly, Hemi, Pull to Lock, Black - Left | 1 | 1 | N/A | A ,E |
Create/add to WishlistCreate/add to Wishlist |
1 | 1101454 | Wheel Lock Assembly, Pull to Lock, Black - Right | 1 | 1 |
$61.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
1 | 1101455 | Wheel Lock Assembly, Pull to Lock, Black - Left | 1 | 1 |
$61.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
2 | 1016037 | NLA - Bracket, Mounting, Chrome - Right | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
2 | 1016038 | NLA - Bracket, Mounting, Chrome - Left | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
2 | 1045847 | NLA - Bracket, Mounting, Chrome - Right | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
2 | 1045848 | NLA - Bracket, Mounting, Chrome - Left | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
3 | 60320X000 | Locknut (1/4-28) | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 47376x024 | Tip, Rubber Wheel Lock Handle, Black | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1016590 | NLA - Handle, Pull, Hemi, Chrome - Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1016591 | NLA - Handle, Pull, Hemi, Chrome - Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1016592 | NLA - Link, Chrome | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1010398 | Washer, Nylon (1/4 x 1/2 x 1/16") | 1 | 7 |
Create/add to WishlistCreate/add to Wishlist |
||
8 | 1007017 | NLA - Screw, Hex Head (1/4-20 x 1-1/4") | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
8 | 16720X004 | Screw, Hex Head (1/4-20 x 1-1/2") | 1 | 1 |
$10.00 |
C |
Create/add to WishlistCreate/add to Wishlist |
9 | 60274X012 | NLA - Screw, Hex Head (1/4-28 x 3/4") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1015443 | NLA - Shoe | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 40157X016 | NLA - Washer (1/4 x 1/2 x 1/16") | 1 | 3 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
12 | 16720X004 | Screw, Hex Head (1/4-20 x 1-1/2") | 1 | 1 |
$10.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
12 | 1007017 | NLA - Screw, Hex Head (1/4-20 x 1-1/4") | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
13 | 60275X000 | Locknut (1/4-20) | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 16721X000 | Locknut (1/4-20) | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
15 | 1011479 | Bolt, Carriage (1/4-20 x 1-1/4") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
16 | 1016980 | Spacer, Wheel Lock Shoe (2-63/64") | 1 | 1 |
$12.00 |
D |
Create/add to WishlistCreate/add to Wishlist |
16 | 1024431 | Spacer, Wheel Lock Shoe (1-45/64") | 1 | 1 |
$16.00 |
D |
Create/add to WishlistCreate/add to Wishlist |
17 | 1008438 | Screw, Set Socket Cup Point (#8-32 x 3/16") | 1 | 2 |
$10.00 |
D |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Includes items 2-13. |
B | Before 5/94. |
C | After 4/94. |
D | These items are needed when 20" or 22" rear wheels are on the chair. These parts are not included with wheel lock. |
E | NLA. See part numbers 1101454 and 1101455 as replacements. |
