Vent Tray Assembly

Print this page

Vent Tray Assembly

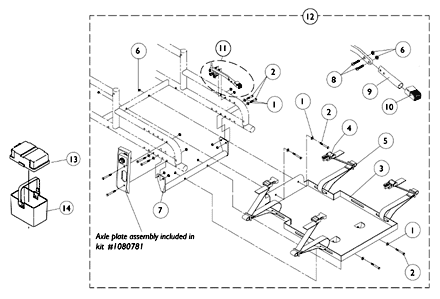

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1026907	Washer (1/4 x 1/2 x 1/16")	1	8	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1055348	Screw, Hex Head (1/4-28 x 1-3/4")	1	8	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1076841	NLA - Tray, Vent	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1052426	NLA - Buckle, Slide Release	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1052424	NLA - Strap with Slide Release Buckle (22" Long)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1065362	Locknut (1/4-28)	1	4	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1078966	NLA - Crossmember	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1055305	NLA - Screw, Socket Button Head (1/4-28 x 3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1080162	NLA - Pedal, Foot Extended, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1053304	NLA - Cap, End, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1080161	NLA - Tilt Foot Lever Assembly, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1080785	NLA - Instruction Sheet	1	1	N/A	A ,E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1080782	NLA - Vent Tray Assembly	1	1	N/A	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1080781	Vent Tray Assembly	1	1		B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1095747	Top, Battery Box	1	1	$26.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1057944	Battery Box Bottom with Strap, 22NF	1	1	$80.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not Shown
B	Includes Items 1-11 and Instruction Sheet.
C	Before 7/1/98
D	After 6/30/98
E	Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.

Catalog Literature

Parts Books for Orbit™
