Accessories - Amputee Attachment & Rear Anti-Tipper

Print this page

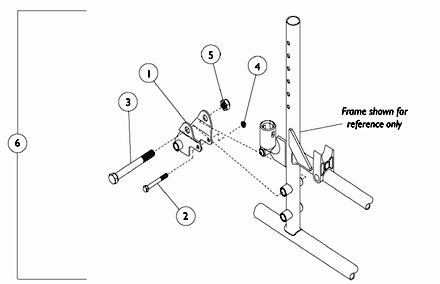

Amputee Attachment and Rear Anti-Tipper

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

6

1182781

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Screw, Hex Head (7/16-20 x 2-1/2")	1	2
3	Locknut (7/16-20)	1	2
4	Bracket, Amputee, Black - Right Adult/ Left Hemi	1	1
5	Bracket, Amputee, Black - Left Adult/ Right Hemi	1	1
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
7	Locknut (1/4-20)	1	2
1	Bracket, Amputee, Black - Right Adult/ Left Hemi	1	1
1	Bracket, Amputee, Black - Left Adult/ Right Hemi	1	1
2	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
3	NLA - Screw, Hex Head (7/16-20 x 2-1/2")	1	2
4	Locknut (1/4-20)	1	2
5	Locknut (7/16-20)	1	2

Kit, Amputee Attachment, Black (Pair)

2

1

$152.00

A

Create/add to Wishlist

Create/add to Wishlist

See Chart

Added to Cart

Part Number		Description		Quantity
Note-A ,B ,D 1061112 MSRP: $67.00		Anti-TIpper - 1360A		1
Note-A ,C ,D 1061111 MSRP: $67.00		Anti-Tipper - 1360		1

Create/add to Wishlist

Create/add to Wishlist

See chart-note

Rear Anti-Tipper

N/A

N/A

N/A

Create/add to Wishlist

Create/add to Wishlist

1058669

NLA - Instruction Sheet

1

1

N/A

B

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes Items 1-5
B	Not Shown
