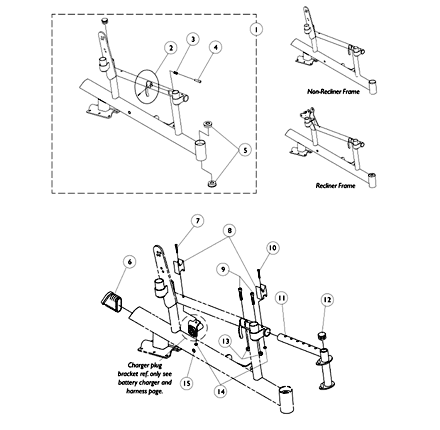

Frames, Side and Hardware (Before 10/1/00)
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 |
See Chart
Added to Cart
Create/add to WishlistCreate/add to WishlistSee chart-note
|
Item #1 - Side Frames and Hardware | N/A | N/A | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||
| 2 | 1090768 | Kit, Lock Handle w/Rivets (Pair) | 2 | 1 |
$16.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||
| 3 | 47471X074 | Spring, Arm Lock | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||
| 4 | 1028594 | Pin, Arm Lock, Black | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||
| 5 | 40117X006 | Bearing (5/8") | 1 | 2 |
$11.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||
| 6 | 1059371 | NLA - Cap, End, Oval | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||
| 7 | 1085124 | NLA - Screw, Socket Flat Head (#10-32 x 1-3/4") | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||
| 8 | 1007541 | Clamp, Seat | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||
| 9 | 1003545 | Screw, Socket Head (1/4-20 x 1-1/4") | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||
| 10 | 1085134 | NLA - Screw, Socket Flat Head (#10-32 x 1-5/8") | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||
| 11 | 1060099 | NLA - Hanger, Front Rigging, Black - Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||
| 11 | 1060100 | NLA - Hanger, Front Rigging, Black - Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||
| 12 | 1027097 | Plug Button, Black (3/4") | 1 | 1 |
$7.50 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||
| 13 | 1025736 | Locknut (1/4-20) | 1 | 2 |
$7.20 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||
| 14 | 1025731 | Locknut (#10-32) | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||
| 15 | 1058520 | NLA - Fastener, Panel Snap-In | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Screws changed 9/16/99 and serve as a direct replacement for chairs manufactured before 9/16/99. |
