Wheels, Rear and Anti-Tippers

Print this page

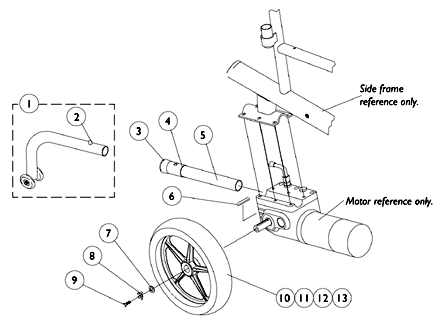

Rear Wheels and Anti-Tippers

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1058824	NLA - Anti-Tipper	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1025763	Spring, Torsion with Double Button	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	15680X013	Anti-Rattle (1")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1037900	NLA - Bushing, Anti-Wear	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1057423	NLA - Tube, Support, Anti-Tipper, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1023264	Key (6mm x 6mm x 40mm)	1	1	$12.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1079247	Washer, Flat (21/64 x 53/64 x 7/64")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1064179	Kit, Locking Tab Washer w/ Instruction Sheet (Pair)	2	1	$28.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1023260	Screw (M8 x 1.25 x 20mm)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1064178	NLA - Drive Wheel Assembly, 5 Spoke, Pneumatic (12-1/2 x 2-1/4") Includes: Locking Tab Washer with Instruction Sheet	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1064177	Drive Wheel Assembly, 5 Spoke w/ Foam Fill Insert (12-1/2 x 2-1/4") Includes: Locking Tab Washer with Instruction Sheet	1	1	$185.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1011524	Tire, Pneumatic, Grey (12-1/2" x 2-1/4")	1	1	$66.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1011525	Tube, Inner, Black (12-1/2 x 2-1/4")	1	1	$17.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1073936	NLA - Insert, Flat Free	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1064176	NLA - Rim with Locking Tab	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	As of 10/20/99 the "Solid" Flat Free Insert was replaced by a "Foam Fill" process. When a Flat Free Insert is requested, a complete wheel must be ordered.

Catalog Literature

Parts Books for Storm Series® Ranger II™
