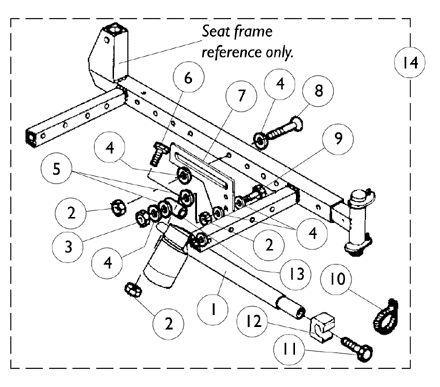

Front Riggings - Motor Actuators, Genius & AT5544 Legrest - Tilt Only or Tilt/Recline & Recline Only
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 | 0204000 | NLA - Actuator Motor, Legrest - Left (4" Stroke) | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
1 | 0001000 | Actuator Motor, Legrest - Right (5" Stroke) | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
1 | 0000900 | Actuator Motor, Legrest - Left (5" Stroke) | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
2 | 7930323 | NLA - Package, Locknut (1/4-20) | 25 | 4 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 7930333 | Locknut (1/4-20) | 25 | 1 |
$44.00 |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 0050406 | Washer, Flat (1/4 x 5/8 x 1/16") | 1 | 7 |
$7.00 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 0050100 | NLA - Washer, Nylon Flat (1/4 x 1/2 x 1/16") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 0051706 | NLA - Screw, Hex Head (1/4-20 x 1") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 0116602 | NLA - Plate, Legrest Actuator Mounting | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1024793 | NLA - Screw, Hex Head (1/4-20 x 1-3/4") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 0224306 | NLA - Screw, Hex Head (1/4-20 x 1-34") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 0157600 | NLA - Strap, Support, Actuator | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 0053306 | NLA - Screw, Allen Head (1/4-28 x 1") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
12 | 0026400 | NLA - Receptacle, Power Legrest | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 0203802 | NLA - Bushing, Extension | 1 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
13 | 0116502 | NLA - Bushing, Anti-Rotation | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
14 | 1072855 | NLA - Kit, Actuator Motor w/ Hardware, Legrest - Right (4" Stroke) | 1 | 1 | N/A | A ,B |
Create/add to WishlistCreate/add to Wishlist |
14 | 1072856 | NLA - Kit, Actuator Motor w/ Hardware, Legrest - Left (4" Stroke) | 1 | 1 | N/A | A ,B |
Create/add to WishlistCreate/add to Wishlist |
14 | 1072857 | NLA - Kit, Actuator Motor w/ Hardware, Legrest - Right (4" Stroke) | 1 | 1 | N/A | B ,D |
Create/add to WishlistCreate/add to Wishlist |
14 | 1072858 | NLA - Kit, Actuator Motor w/ Hardware, Legrest - Left (4" Stroke) | 1 | 1 | N/A | B ,D |
Create/add to WishlistCreate/add to Wishlist |
14 | 1072859 | NLA - Kit, Actuator Motor w/ Hardware, Legrest - Right (5" Stroke) | 1 | 1 | N/A | A ,C |
Create/add to WishlistCreate/add to Wishlist |
14 | 1072860 | Kit, Actuator Motor w/ Hardware, Legrest - Left (5" Stroke) | 1 | 1 | A ,C |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 1072861 | Kit, Actuator Motor w/ Hardware, Legrest - Right (5" Stroke) | 1 | 1 | C ,E |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 1072862 | Kit, Actuator Motor w/ Hardware, Legrest - Left (5" Stroke) | 1 | 1 | C ,E |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Item 13 is not used with this legrest actuator attaching hardware. |
B | Genius |
C | Invacare, AT5544 |
D | 20" Seat Depth Only |
E | 16"-17" Seat Depth Only |
