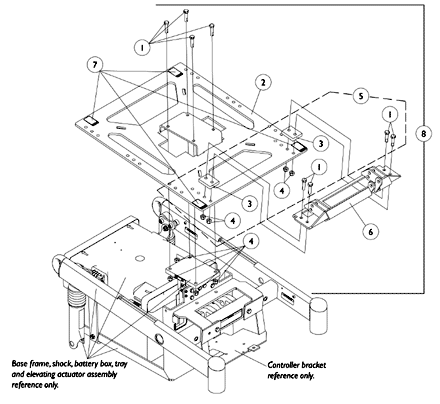

Elevating Seat Option - Seat Plate & Front Actuator Support Bracket
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 1109615 | Plate, Seat P.T.O. with Warning Decals | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
3 | 1108225 | NLA - Spacer, Seat Plate, Black | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1026158 | Locknut (5/16-18) | 1 | 8 |
$9.20 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1109081 | NLA - Hardware, Front Actuator Support Bracket Mounting | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
6 | 1108230 | NLA - Bracket, Actuator Support, Front, Black | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1079203 | Decal, Warning Pinch Point | 1 | 4 |
$7.00 |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1108427 | NLA - Bracket Assembly, Seat Plate and Front Actuator Support | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Includes items 1, 3 and 4 |
B | Includes items 1-4, 6 and 7 |
