Front Riggings - Legrest Supports - P904A

Print this page

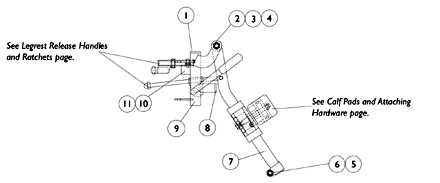

P904A Legrest Supports

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1027095	Plug Button, Black (7/8")	1	1	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	11919X000	NLA - Screw, Slotted Truss Head (3/8-16 x 1-1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1058636	NLA - Washer, Nylon (25/64 x 7/8 x 1/32")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	40363X000	Hex Nut (3/8"-16)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	7930330	NLA - Locknut (5/16-24)	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1026030	Bolt, Lug (5/16-24 x 1-3/8")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	8881048851	Tube, Elevating Adjustable Support, Color - Right	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	8881048852	Tube, Elevating Adjustable Support, Color - Left	1	1	$37.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1027097	Plug Button, Black (3/4")	1	1	$7.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	8881058664	NLA - Tube, Legrest Support, Color - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	8881058665	NLA - Tube, Legrest Support, Color - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1022874	Bumper	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1030979	Screw, Phillips Pan Head Tap (#10-32 x 3/4")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	8881058646	NLA - Legrest Support Assembly, Adult, Color - Right	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	8881058647	NLA - Legrest Support Assembly, Adult, Color - Left	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Specify frame color when ordering.
B	Not Shown

Catalog Literature

Parts Books for Power Tilt Only (PTO-STM) Elevating Seat w/ PTO (ESS-PTO)
