Front Riggings - Pivot/ Slide Tube & 1651 Composite Footplates

Print this page

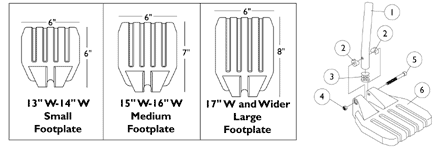

Pivot/ Slide Tube and 1651 Composite Footplates

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1057852	Tube, Pivot/Slide, Curved End, Steel, Black (9-7/8")	1	1	$37.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1057854	Tube, Pivot/Slide, Curved End, 2" Longer, Steel, Black	1	1	$37.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1058418	Tube, Pivot/Slide, Curved End, 4" Longer, Steel, Black	1	1	$30.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1025457	Spacer, Coved (1/4 x 3/4 x 11/32")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1027097	Plug Button, Black (3/4")	1	1	$7.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	7930323	NLA - Package, Locknut (1/4-20)	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	7930366	Package, Socket Head Screw (1/4-20 x 2-1/4")	25	1	$44.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1026879	Footplate, Composite, Small, Black (6" W x 6" L)	1	1	$53.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1026880	Footplate, Composite, Medium, Black (7" W x 6" L)	1	1	$53.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1026881	Footplate, Composite, Large, Black (8" W x 6" L)	1	1	$80.00	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1026879	Footplate, Composite, Small, Black (6" W x 6" L)	1	1	$53.00	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1026880	Footplate, Composite, Medium, Black (7" W x 6" L)	1	1	$53.00	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1026881	Footplate, Composite, Large, Black (8" W x 6" L)	1	1	$80.00	G	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	ALPT Option
B	13"-14" Wide
C	15"-16" Wide
D	17" and Wider
E	15"-17" Wide
F	18"-19" Wide
G	20" and Wider

Catalog Literature

Parts Books for Power Tilt Only (PTO-STM) Elevating Seat w/ PTO (ESS-PTO)
