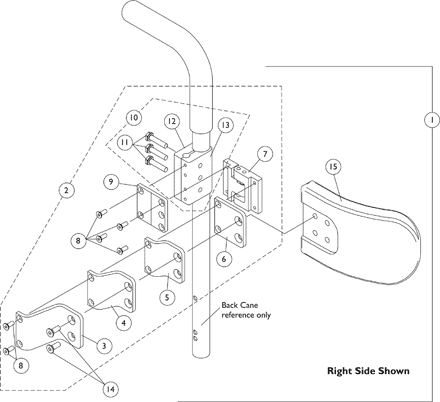

Accessories - Lateral Support Assembly

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1107298

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Medium (6" W x 4" H)	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Medium (6" W x 4" H)	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Medium (6" W x 4" H)	1	2
3	Bracket, Extension Offset, Black (2")	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Medium (6" W x 4" H)	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Medium (6" W x 4" H)	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Medium (6" W x 4" H)	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Medium (6" W x 4" H)	1	2
15	Pad, Lateral Support - Medium (6" W x 4" H)	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Medium (6" W x 4" H)	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Medium (6" W x 4" H)	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Medium (6" W x 4" H)	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Medium (6" W x 4" H)	1	2

Kit, Swingaway Lateral Support Assemblies w/ Medium Pads (Pair)

$297.00

Create/add to Wishlist

1107299

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Large (6" W x 5" H)	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Large (6" W x 5" H)	1	2
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Large (6" W x 5" H)	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Large (6" W x 5" H)	1	2
15	Pad, Lateral Support - Large (6" W x 5" H)	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Large (6" W x 5" H)	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Large (6" W x 5" H)	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Large (6" W x 5" H)	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Large (6" W x 5" H)	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Large (6" W x 5" H)	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Large (6" W x 5" H)	1	2
3	Bracket, Extension Offset, Black (2")	1	2
4	NLA - Bracket, Extension Offset, Black (1")	1	2
5	NLA - Bracket, Extension Offset, Black (1/2")	1	2
6	Bracket, Flush Mount, Black	1	2
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	12
9	NLA - Bracket, Mounting, Black	1	2
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	6
12	Half Clamp, Non-Threaded Holes	1	2
13	NLA - Half Clamp, Threaded Holes	1	2
14	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
15	Pad, Lateral Support - Large (6" W x 5" H)	1	2

Kit, Swingaway Lateral Support Assembies w/ Large Pads (Pair)

$297.00

Create/add to Wishlist

1107245

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1

Kit, Swingaway Bracket Assembly with Offset Brackets, Cane Clamp - Right

$128.00

Create/add to Wishlist

1107246

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
3	Bracket, Extension Offset, Black (2")	1	1
4	NLA - Bracket, Extension Offset, Black (1")	1	1
5	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	Bracket, Flush Mount, Black	1	1
7	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
8	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	6
9	NLA - Bracket, Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1

Kit, Swingaway Bracket Assembly with Offset Brackets, Cane Clamp - Left

$128.00

Create/add to Wishlist

1107117

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	3
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Half Clamp, Threaded Holes	1	1

Kit, Lateral Support Mounting Hardware

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 3-9 and 11-15
B	Includes items 3-9 and 11-13
C	Includes items 11-13

Catalog Literature

Parts Books for Power Tilt Only (PTO-PR)

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Accessories - Lateral Support Assembly

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature
