1-4

See Chart

Added to Cart

Item Number	Description	Ocean Blue	Emerald Green	Liquid Black	Candy Apple Red
1	Side Panel with Rubber Bushing (Captain & Sling Seat) - Right	Note-A 1095408- NLA	Note-A 1095409	Note-A 1095407- NLA	Note-A 1095406- NLA
1	Side Panel with Rubber Bushing (Captain & Sling Seat) - Left	Note-A 1095412	Note-A 1095413	Note-A 1095411	Note-A 1095410
2	Battery Cover Ranger II Only - 16" W	Note-B 1095392- NLA	Note-B 1095393- NLA	Note-B 1095391- NLA	Note-B 1095390- NLA
2	Battery Cover Ranger II Only - 18" W	Note-B 1095396- NLA	Note-B 1095397- NLA	Note-B 1095395- NLA	Note-B 1095394- NLA
2	Battery Cover Ranger II Only - 20" W	Note-B 1095400- NLA	Note-B 1095401- NLA	Note-B 1095399- NLA	Note-B 1095398- NLA
3	Trunk Lid - 16" W	Note-B 1095416- NLA	Note-B 1095417- NLA	Note-B 1095415- NLA	Note-B 1095414- NLA
3	Trunk Lid - 18" W	Note-B 1095420- NLA	Note-B 1095421- NLA	Note-B 1095419- NLA	Note-B 1095418- NLA
3	Trunk Lid - 20" W	Note-B 1095424- NLA	Note-B 1095425- NLA	Note-B 1095423- NLA	Note-B 1095422- NLA
4	Filler without Plug Button (Captain) (Black only) - Right	1088309- NLA	1088309- NLA	1088309- NLA	1088309- NLA
4	Filler without Plug Button (Captain) (Black only) - Left	1088310- NLA	1088310- NLA	1088310- NLA	1088310- NLA
4	Filler without Plug Button (Sling Seat) (Black only) - Right	1088311- NLA	1088311- NLA	1088311- NLA	1088311- NLA
4	Filler without Plug Button (Sling Seat) (Black only) - Left	1088312- NLA	1088312- NLA	1088312- NLA	1088312- NLA
	Color Conversion Package, Ranger II - 16" W	Note-A ,B ,C ,D 1096899	Note-A ,B ,C ,D 1096900	Note-A ,B ,C ,D 1096898	Note-A ,B ,C ,D 1096897
	Color Conversion Package, Ranger II - 18" W	Note-A ,B ,C ,D 1096895	Note-A ,B ,C ,D 1096896	Note-A ,B ,D 1096894	Note-A ,B ,D 1096893- NLA
	Color Conversion Package, Ranger II - 20" W	Note-C ,D 1096903	Note-D 1096904	Note-C ,D 1096902	Note-C ,D 1096901
	Color Conversion Package, Excel - 16" W	Note-C ,D 1096915- NLA	Note-C ,D 1096916- NLA	Note-D 1096914- NLA	Note-D 1096913- NLA
	Color Conversion Package, Excel - 18" W	Note-C ,D 1096911- NLA	Note-C ,D 1096912- NLA	Note-C ,D 1096910- NLA	Note-A ,B ,C ,D 1096909- NLA
	Color Conversion Package, Excel - 20" W	Note-A ,B ,C ,D 1096919- NLA	Note-A ,B ,C ,D 1096920- NLA	Note-A ,B ,C ,D 1096918- NLA	Note-A ,B ,C ,D 1096917- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Decals not included. See page titled, "Packaging, Literature and Decals."
B	Captain seat shrouds in 18" wide only.
C	Not Shown.
D	Includes Items 1, 3, 5, 6, 8, 10, 16 and 17.

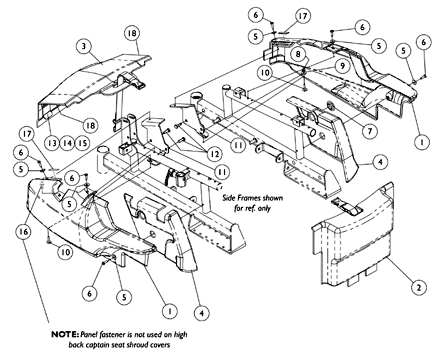

Item #'s 1-4 Shroud Covers

N/A

Create/add to Wishlist

5

1070587

Washer, Flat (3/16 x 5/8 x 1/16")

1

6

$10.00

Create/add to Wishlist

6

1028755

Screw, Phillips Pan Head (#10-32 x 5/8")

1

6

$10.00

Create/add to Wishlist

7

1089724

NLA - Plug Button, Black

1

2

N/A

Create/add to Wishlist

8

7930332

NLA - Locknut, High Profile (#10-32)

25

1

N/A

Create/add to Wishlist

9

1070594

NLA - Bushing, Rubber

1

N/A

Create/add to Wishlist

10

1070575

NLA - Screw, SEMS w/ Washer (#10-32 x 7/8")

1

2

N/A

Create/add to Wishlist

11

1088261

NLA - Bracket, Shroud, Black - Right

1

N/A

Create/add to Wishlist

11

1088262

Bracket, Shroud, Black - Left

1

Create/add to Wishlist

12

1050161

NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")

1

3

N/A

Create/add to Wishlist

13

1070577

NLA - Plate, Trunk Clip

1

2

N/A

Create/add to Wishlist

14

1070588

NLA - Screw, Phillips Truss Head (#10-32 x 1/2")

1

4

N/A

Create/add to Wishlist

15

7930332

NLA - Locknut, High Profile (#10-32)

25

1

N/A

Create/add to Wishlist

16

1088497

NLA - Fastener, Panel (5/8" W x 3/4" L)

1

N/A

C

Create/add to Wishlist

17

1070555

NLA - Fastener, Dual Lock (5/8" W x 2" L)

1

2

N/A

Create/add to Wishlist

18

1070556

NLA - Fastener, Dual Lock (1" W x 2" L)

1

2

N/A

Create/add to Wishlist

1087172

Hardware, Side Panel Attaching

1

A ,B

Note Code	Definition
A	Not Shown.
B	Includes Items 5, 6, 10, 11, 12, 15, and 17.
C	Sling Seat Only.

Shroud Covers (After 2/29/00)
