Item Number	Description	Bright Plum Metallic	Bright Blue Metallic	Blue Green Chameleon	Candy Apple Red	Bright Silver Metallic
1	Side Panel with Rubber Bushing (Sling Seat) - Right	Note-A ,B 1087147- NLA	Note-B ,A 1087148- NLA	Note-A ,B 1087149- NLA	Note-A ,B 1087150- NLA	Note-A ,B 1087151- NLA
1	Side Panel with Rubber Bushing (Sling Seat) - Left	Note-A ,B 1087152	Note-A 1087153- NLA	Note-A 1087154- NLA	Note-A 1087155- NLA	Note-A 1087156- NLA
2	Battery Cover	Note-B 1085572- NLA	Note-B 1085573- NLA	Note-B 1085574- NLA	Note-B 1085575- NLA	Note-B 1086623- NLA
3	Trunk Lid	Note-B 1086181- NLA	Note-B 1086182- NLA	Note-B 1086183- NLA	Note-B 1086184- NLA	Note-B 1086185- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Decals not included. See page titled, "Packaging, Literature and Decals."
B	These Shrouds are no longer available. See page titled, "Shroud Covers - After 2/29/00" for color conversion options.

Item #'s 1-3 Shroud Covers

N/A

Create/add to Wishlist

4

1070555

NLA - Fastener, Dual Lock (5/8" W x 2" L)

1

2

N/A

Create/add to Wishlist

5

1070587

Washer, Flat (3/16 x 5/8 x 1/16")

1

8

$10.00

Create/add to Wishlist

6

1028755

Screw, Phillips Pan Head (#10-32 x 5/8")

1

8

$10.00

Create/add to Wishlist

7

7930332

NLA - Locknut, High Profile (#10-32)

25

1

N/A

Create/add to Wishlist

8

1070594

NLA - Bushing, Rubber

1

2

N/A

Create/add to Wishlist

9

1070575

NLA - Screw, SEMS w/ Washer (#10-32 x 7/8")

1

2

N/A

Create/add to Wishlist

10

1050161

NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")

1

3

N/A

Create/add to Wishlist

11

1088261

NLA - Bracket, Shroud, Black - Right

1

N/A

Create/add to Wishlist

11

1088262

Bracket, Shroud, Black - Left

1

Create/add to Wishlist

12

1070577

NLA - Plate, Trunk Clip

1

2

N/A

Create/add to Wishlist

13

1070588

NLA - Screw, Phillips Truss Head (#10-32 x 1/2")

1

4

N/A

Create/add to Wishlist

14

7930332

NLA - Locknut, High Profile (#10-32)

25

1

N/A

Create/add to Wishlist

15

1088497

NLA - Fastener, Panel (5/8" W x 3/4" L)

1

N/A

Create/add to Wishlist

16

1070556

NLA - Fastener, Dual Lock (1" W x 2" L)

1

2

N/A

Create/add to Wishlist

1086186

Hardware, Side Panel Attaching

1

A ,B

Note Code	Definition
A	Not Shown.
B	Includes Items 4-7 and 9-11.

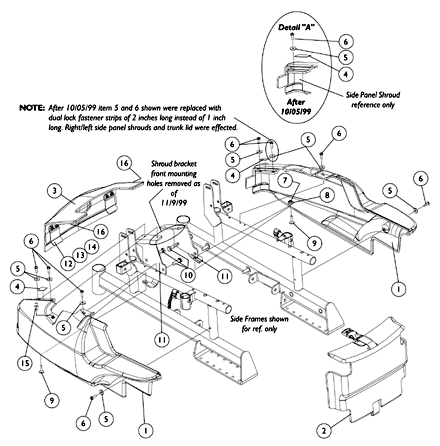

Shroud Covers R2 jr. (Before 3/1/00)
