Item Number	Description	Ocean Blue	Emerald Green	Liquid Black	Candy Apple Red
1	Side Panel with Rubber Bushing - Right	Note-A 1095408- NLA	Note-A 1095409	Note-A 1095407- NLA	Note-A 1095406- NLA
1	Side Panel with Rubber Bushing - Left	Note-A 1095412	Note-A 1095413	Note-A 1095411	Note-A 1095410
2	Battery Cover	1095388- NLA	1095389- NLA	1095387- NLA	1095386- NLA
3	Trunk Lid	1095404- NLA	1095405- NLA	1095403- NLA	1095402- NLA
	Color Conversion Package	Note-A ,B ,C 1096907	Note-A ,B ,C 1096908	Note-A ,B ,C 1096906	Note-A ,B ,C 1096905

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Decals not included. See page titled, "Packaging, Literature and Decals."
B	Includes Items 1-7, 9, 15.
C	Not Shown.

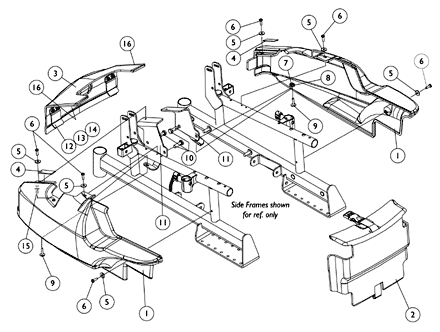

Item #'s 1-3 Shroud Covers

N/A

Create/add to Wishlist

4

1070555

NLA - Fastener, Dual Lock (5/8" W x 2" L)

1

2

N/A

Create/add to Wishlist

5

1070587

Washer, Flat (3/16 x 5/8 x 1/16")

1

8

$10.00

Create/add to Wishlist

6

1028755

Screw, Phillips Pan Head (#10-32 x 5/8")

1

8

$10.00

Create/add to Wishlist

7

7930332

NLA - Locknut, High Profile (#10-32)

25

1

N/A

Create/add to Wishlist

8

1070594

NLA - Bushing, Rubber

1

2

N/A

Create/add to Wishlist

9

1070575

NLA - Screw, SEMS w/ Washer (#10-32 x 7/8")

1

2

N/A

Create/add to Wishlist

10

1050161

NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")

1

3

N/A

Create/add to Wishlist

11

1088261

NLA - Bracket, Shroud, Black - Right

1

N/A

Create/add to Wishlist

11

1088262

Bracket, Shroud, Black - Left

1

Create/add to Wishlist

12

1070577

NLA - Plate, Trunk Clip

1

2

N/A

Create/add to Wishlist

13

1070588

NLA - Screw, Phillips Truss Head (#10-32 x 1/2")

1

4

N/A

Create/add to Wishlist

14

7930332

NLA - Locknut, High Profile (#10-32)

25

1

N/A

Create/add to Wishlist

15

1088497

NLA - Fastener, Panel (5/8" W x 3/4" L)

1

N/A

Create/add to Wishlist

16

1070556

NLA - Fastener, Dual Lock (1" W x 2" L)

1

2

N/A

Create/add to Wishlist

1086186

Hardware, Side Panel Attaching

1

A ,B

Shroud Covers R2 jr. (After 2/29/00)
