Front Riggings - Footrest Supports - P93M

Print this page

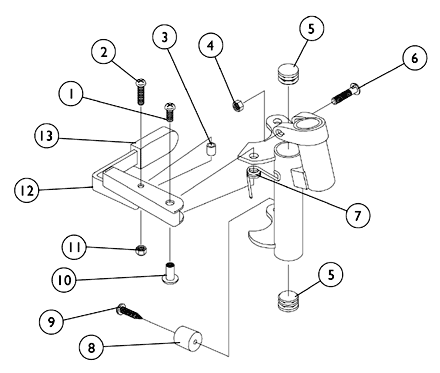

P93M Footrest Support

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	7930359	NLA - Package, Screw, Phillips Pan Head (#10-32 x 1/2")	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	7930360	NLA - Package, Screw, Phillips Pan Head (#10-32 x 11/16")	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	47565X057	Bushing (7/32 x 3/8 x 11/32")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1107321	Nut, Low Cap (5/16"-24)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1027095	Plug Button, Black (7/8")	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	11232X009	Bolt, Lug (5/16-24 x 1-3/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1008935	Spring, Release - Right	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1008936	Spring, Release - Left	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1022874	Bumper	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1030979	Screw, Phillips Pan Head Tap (#10-32 x 3/4")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	67005X000	Rivnut (#10-32)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	7930365	NLA - Locknut (#10-32)	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1035539	Handle, Release, Black - Right	1	1	$14.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1035540	Handle, Release, Black - Left	1	1	$14.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1006490	Tip, Plastic, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	8881037836	NLA - Footrest Support Assembly, Adult, Color - Right	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	8881037837	NLA - Footrest Support Assembly, Adult, Color - Left	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not Shown.
B	Specify frame color when ordering. See page titled, "Frame Finishes, Touch-Up Paint and Upholstery Options."

Catalog Literature

Parts Books for Storm Series® Ranger II™ Excel™ R2™ jr.
