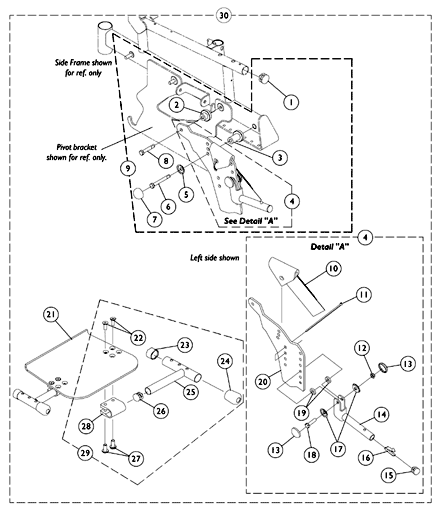

Front Riggings - Adjustable Flip-Up Removable Footboard (Before 3/1/00)
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 1098936 | NLA - Bushing, Black (21/64 x 1-1/4 x 23/32") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1098937 | NLA - Bushing, Black (21/64 x 1-1/4 x 1-19/32") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1080730 | NLA - Footboard Pivot Assembly - Right | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
4 | 1080731 | NLA - Footboard Pivot Assembly - Left | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
5 | 1028491 | NLA - Washer, Caplugs (11/32" I.D. x 1" O.D.) | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1043628 | NLA - Screw, Hex Head w/ Patch (5/16-18 x 2-1/2") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1016291 | Cap, Hub, Black | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1043627 | NLA - Screw, Hex Head w/ Patch (5/16-18 x 1-3/4") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1086111 | NLA - Footboard Mounting Hardware (Pair) | 2 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
10 | 1081224 | NLA - Guard, Footboard Pivot Bracket | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 98007X005 | Tie Wrap (11-1/2" L) | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
12 | 1025730 | Locknut (5/16-24) | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 1016291 | Cap, Hub, Black | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 1074130 | NLA - Tube, Pivot | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
15 | 1027097 | Plug Button, Black (3/4") | 1 | 1 |
$7.50 |
Create/add to WishlistCreate/add to Wishlist |
|
16 | 40188X009 | Button, Single Snap | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
17 | 1028491 | NLA - Washer, Caplugs (11/32" I.D. x 1" O.D.) | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 1070552 | NLA - Screw, Hex Head (5/16-24 x 1-1/8) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
19 | 1074210 | NLA - Washer, Nylon (23/64 x 3/4 x 5/32") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
20 | 1081217 | NLA - Bracket, Footrest Mounting, Black - Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
20 | 1081218 | NLA - Bracket, Footrest Mounting, Black - Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
21 | 1074129 | NLA - Footboard | 1 | 1 | N/A | F |
Create/add to WishlistCreate/add to Wishlist |
22 | 1029545 | Screw, Socket Flat Head (1/4-20 x 3/4") | 1 | 4 |
$9.20 |
D |
Create/add to WishlistCreate/add to Wishlist |
23 | 15680X012 | Collar, Anti-Rattle (7/8") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
24 | 1016346 | Cap, End, Tube, Black (7/8") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
25 | 1074137 | NLA - Tube, Footplate Support, Black | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
26 | 1027097 | Plug Button, Black (3/4") | 1 | 2 |
$7.50 |
Create/add to WishlistCreate/add to Wishlist |
|
27 | 1082686 | Nut, Barrel, Hex Head (1/4-20 x 11/16") | 1 | 4 |
$9.20 |
D |
Create/add to WishlistCreate/add to Wishlist |
28 | 1058517 | Clamp, Footplate | 1 | 2 |
$13.50 |
D |
Create/add to WishlistCreate/add to Wishlist |
29 | 1080740 | NLA - Footboard Assembly Hardware (Pair) | 2 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
30 | 1086110 | NLA - Footboard Assembly w/ Instructions | 1 | 1 | N/A | C ,J |
Create/add to WishlistCreate/add to Wishlist |
1078193 | NLA - Instruction Sheet, Footboard Assembly | 1 | 1 | N/A | I |
Create/add to WishlistCreate/add to Wishlist |
|
1095105 | NLA - Kit, Footboard Conversion (16" W) | 1 | 1 | N/A | I |
Create/add to WishlistCreate/add to Wishlist |
|
1095106 | NLA - Kit, Footboard Conversion (18" W) | 1 | 1 | N/A | H ,I |
Create/add to WishlistCreate/add to Wishlist |
|
1095107 | NLA - Kit, Footboard Conversion (20" W) | 1 | 1 | N/A | I |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Includes Items 10-20. |
B | Includes Items 1-8. |
C | Footboard Assembly Kit before 3/1/00 is NLA. Refer to the Footboard Assembly Conversion Kits provided that will convert to a Footboard Assembly made after 2/29/00. Order according to the chair width. Captain Seats will use the 18" wide conversion kit |
D | Items 22, 27, and 28 must be ordered together for chairs manufactured before 8/10/99 due to a hardware change. |
E | Includes Items 22-28. |
F | Footboard before 3/1/200 is NLA. See page titled "Front Rigging - Adjustable Flip-Up Removable Footboard (After 2/29/00)" and select a footboard according to the chair width |
G | Includes Items 9, 21 and 29. |
H | Captain Seats will use the 18" wide conversion kit |
I | Not Shown. For individual components for the conversion kits, See page titled "Front Rigging - Adjustable Flip-Up Removable Footboard (After 2/29/00)" |
J | Includes Items 9, 21, and 29. |
