Shock Suspension Mounting Hardware (RWD)

Print this page

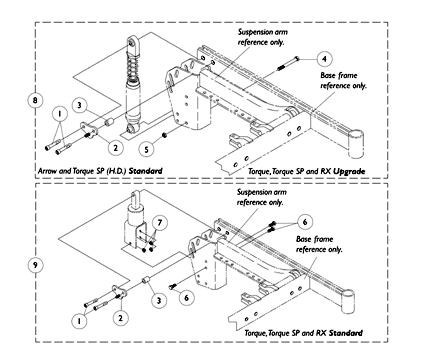

Shock Suspension Mounting Hardware (RWD)

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1043627	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1-3/4")	1	2	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1104845	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	2	$10.00	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1049354	NLA - Bracket, Hanger, Black	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1039649	NLA - Spacer (3/8 x 5/8 x 25/32")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1042486	Screw, Hex Head (5/16-18 x 2-3/4")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1028769	Locknut (5/16-18)	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1039860	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	3	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1028769	Locknut (5/16-18)	1	3	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1050170	NLA - Hardware, Shock Mounting (Per Side)	1	1	N/A	B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1104892	NLA - Hardware, Shock Mounting (Per Side)	1	1	N/A	B ,E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1042445	NLA - Hardware, Rubber Element Mounting (Per Side)	1	1	N/A	C ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1104893	NLA - Hardware, Rubber Element Mounting (Per Side)	1	1	N/A	C ,E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not used when mounting shocks with group 24 batteries.
B	Includes items 1-5.
C	Includes items 1-3, 6, and 7.
D	Before 3/1/01.
E	After 2/28/01.
