Suspension Arm & Mounting Hardware

Print this page

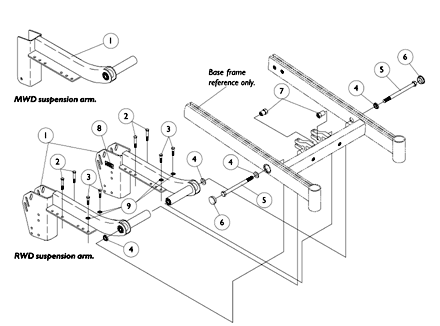

Suspension Arm and Mounting Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1082602	NLA - Kit, Suspension Arm w/ Warning Decal, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1082603	NLA - Kit, Suspension Arm w/ Warning Decal, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1070365	NLA - Kit, Suspension Arm, MWD with Warning Decal, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1070366	NLA - Kit, Suspension Arm, MWD with Warning Decal, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1043628	NLA - Screw, Hex Head w/ Patch (5/16-18 x 2-1/2")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1104257	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1039684	NLA - Washer (1/2" I.D. x 7/8" O.D.)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1039682	NLA - Screw, Hex Head (1/2-20 x 7")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1038353	Plug Button, Headtube, Black	1	2	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1039683	NLA - Nut, Shoulder (1/2-20)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1053056	NLA - Decal, Warning	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1023263	NLA - Washer, Internal Tooth (M8)	1	4	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1104894	NLA - Hardware, Motor Mounting	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Part #1023263 is no longer available as a service part individually. Order part #1104894 Motor Mounting Hardware (not shown) as a replacement.

Catalog Literature

Parts Books for Storm Series® 2G
