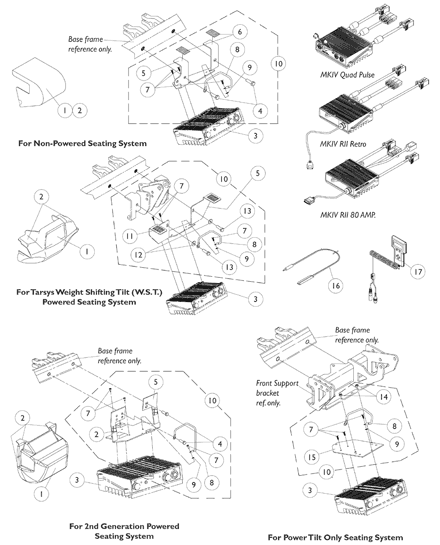

Electronics - MKIV Controllers, Programmer and Hardware - MKIV Quad Pulse, RII Retro, and RII 80 Amp.
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 | 1082320 | NLA - Cover, Shroud with Fastener Strips, Controller | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
1 | 1091310 | NLA - Cover, Controller Shroud w/ Hardware | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
2 | 1079246 | NLA - Fastener, Loop Adhesive Back (1" W x 3" L) | 1 | 2 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
2 | 0065400 | Fastener, Loop Adhesive Back (2" W x 1-1/2" L) | 1 | 2 | B |
Create/add to WishlistCreate/add to Wishlist |
|
2 | 1092662 | NLA - Package, Fastener, Dual Lock 250 (1/2" W x 7/8" L) | 10 | 4 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
3 | 1105707 | NLA - Controller, MKIV Quad Pulse | 1 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
3 | 1095269 | NLA - Controller, MKIV RII, Retro | 1 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
3 | 1106819 | NLA - Controller, MKIV RII (80 AMP) | 1 | 1 | N/A | E ,F ,G |
Create/add to WishlistCreate/add to Wishlist |
4 | 1104258 | Screw, Hex Head w/ Patch (5/16-18 x 1") | 1 | 2 |
$12.00 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1092661 | NLA - Bracket w/ Fastener Strips, Controller Mounting | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
5 | 1082321 | NLA - Bracket, with Fastener Strips Controller Mounting | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
5 | 1092659 | NLA - Kit, Controller Mounting Bracket with Fastener Strips, Black | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
6 | 1070504 | NLA - Fastener, Hook with Adhesive Back (1" W x 1" L) | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1040223 | NLA - Screw (#8-32 x 1/2") | 1 | 3 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1104260 | NLA - Wire, Grounding Jumper Strap E.S.D. | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1027263 | NLA - Washer, Lock Internal Tooth (#10) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1070401 | NLA - Bracket with Hardware, Controller Mounting | 1 | 1 | N/A | A ,H |
Create/add to WishlistCreate/add to Wishlist |
10 | 1092650 | NLA - Bracket with Hardware, Controller Mounting | 1 | 1 | N/A | C ,I |
Create/add to WishlistCreate/add to Wishlist |
10 | 1107312 | NLA - Bracket with Hardware, Controller Mounting | 1 | 1 | N/A | J |
Create/add to WishlistCreate/add to Wishlist |
10 | 1083451 | NLA - Hardware, Controller Mounting without Bracket | 1 | 2 | N/A | B ,K |
Create/add to WishlistCreate/add to Wishlist |
11 | 0065100 | NLA - Hook Fastener with Adhesive Back (2" W x 1-1/2" L) | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
12 | 1079247 | Washer, Flat (21/64 x 53/64 x 7/64") | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 1104257 | Screw, Hex Head w/ Patch (5/16-18 x 1-1/4") | 25 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 7930332 | NLA - Locknut, High Profile (#10-32) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
15 | 1087790 | NLA - Bracket, Controller Mounting, Black | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
16 | 1020818 | Switch, Red Flex Ribbon (Tape) Reset | 1 | 1 |
$177.00 |
Create/add to WishlistCreate/add to Wishlist |
|
16 | 1123276 | Kit, Switch, Black Egg Reset w/ Hook/Loop Adhesive Back Fastener & Attaching Screws (EGSBLK) | 1 | 1 |
$96.00 |
Q |
Create/add to WishlistCreate/add to Wishlist |
17 | 1109091 | NLA - Programmer, Remote | 1 | 1 | N/A | L |
Create/add to WishlistCreate/add to Wishlist |
1105912 | NLA - Kit, Electro Static Discharge Ground Strap - MKIV | 1 | 1 | N/A | M |
Create/add to WishlistCreate/add to Wishlist |
|
1105913 | NLA - Instruction Sheet, E.S.D. Strap Kit MKIV | 1 | 1 | N/A | M ,R |
Create/add to WishlistCreate/add to Wishlist |
|
1064404 | NLA - Virtual Service Modem Kit | 1 | 1 | N/A | M ,N |
Create/add to WishlistCreate/add to Wishlist |
|
1091631 | NLA - Virtual Service Software Kit | 1 | 1 | N/A | M ,O |
Create/add to WishlistCreate/add to Wishlist |
|
1103051 | NLA - MKIV One 2 One Software Kit | 1 | 1 | N/A | M ,N |
Create/add to WishlistCreate/add to Wishlist |
|
1046117 | NLA - Printer and Interface | 1 | 1 | N/A | M ,P |
Create/add to WishlistCreate/add to Wishlist |
|
1095204 | NLA - Cable, Virtual Service, Charger/Modem | 1 | 1 | N/A | M |
Create/add to WishlistCreate/add to Wishlist |
|
1091980 | NLA - Disk, 3.5 H.D. Floppy with V.S. Software | 1 | 1 | N/A | M |
Create/add to WishlistCreate/add to Wishlist |
|
1091637 | NLA - Adaptor, Null Modem | 1 | 1 | N/A | M |
Create/add to WishlistCreate/add to Wishlist |
|
1091636 | NLA - Service Manual - V.S. Software Kit | 1 | 1 | N/A | M |
Create/add to WishlistCreate/add to Wishlist |
|
1026572 | NLA - Paper, Printer | 1 | 1 | N/A | M |
Create/add to WishlistCreate/add to Wishlist |
|
1027280 | NLA - Harness, Printer Wiring | 1 | 1 | N/A | M |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Used on Non-powered Seating Systems. |
B | Used on W.S.T. Powered Seating Systems. |
C | Used on 2nd Generation Powered Seating Systems. |
D | For chairs built before 4/12/01, an E.S.D. ground strap kit should be used when a new controller is ordered. |
E | RII retro controller after 4/30/00 with joystick serve as a direct replacement for joystick/controller part number 1080723. |
F | Battery harness must be present when the RII 80 Amp. controller is used. RII 80 Amp. joystick decal is also used. Available as a service part upgrade 11/1/01 for all Torque models with 4-pole motors only. |
G | Torque and Torque SP after 10/31/01. |
H | Includes items 4-9 |
I | Includes items 2, 4, 5, and 7-9. |
J | Includes items 7-9 and 14-15. |
K | Includes items 7-9 and 11-13 |
L | Remote programmer with the dual connectors is the only programmer useable with RII Joystick. |
M | Not Shown. |
N | Part number 1095204 is available for individual sale |
O | Part numbers 1091980, 1091637, 1091636 and 1095204 are available for individual sale |
P | Part numbers 1026572 and 1027280 are available for individual sale |
Q | Not Shown. After 5/23/04 the Egg Reset Switch became available as a service part and can be used as a direct replacement for the tape reset switch part # 1020818. |
R | Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy. |
