Canes - Back with Hardware - Adjustable Height and Adjustable Angle Back

Print this page

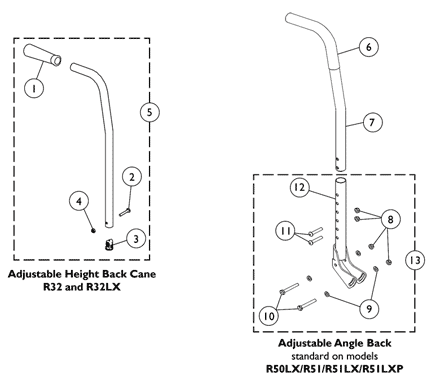

Back Canes and Hardware - Adjustable Height and Adjustable Angle Back

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1057248	Grip, Hand, Foam (4-3/4")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1070759	Screw, Hex Head (1/4-20 x 1-1/2")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1056551	Insert	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	7930307	NLA - Locknut (1/4-20")	25	3	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1107655	NLA - Back Cane Assembly	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1006229	Grip, Foam (8")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1028372	Back Cane Assembly, 10 Degree Bend	1	1	$73.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	7930323	NLA - Package, Locknut (1/4-20)	25	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1026907	Washer (1/4 x 1/2 x 1/16")	1	4	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1024793	NLA - Screw, Hex Head (1/4-20 x 1-3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1008432	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1108621	NLA - Bracket with Adjustable Back Tube, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1107668	NLA - Adjustable Angle Back Hardware (1 pair)	2	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	16-18" Back Height
B	Includes Items 8-12.
