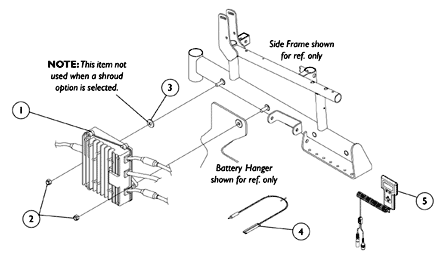

Electronics - MKIV Controller, Programmer & Attaching Hardware
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 | 1095270 | NLA - Controller, MKIV RII, Retro L.P. | 1 | 1 | N/A | A ,I |
Create/add to WishlistCreate/add to Wishlist |
1 | 1095269 | NLA - Controller, MKIV RII, Retro | 1 | 1 | N/A | B ,J |
Create/add to WishlistCreate/add to Wishlist |
2 | 1026158 | Locknut (5/16-18) | 1 | 2 |
$9.20 |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1079247 | Washer, Flat (21/64 x 53/64 x 7/64") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1020818 | Switch, Red Flex Ribbon (Tape) Reset | 1 | 1 |
$177.00 |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1123276 | Kit, Switch, Black Egg Reset w/ Hook/Loop Adhesive Back Fastener & Attaching Screws (EGSBLK) | 1 | 1 |
$96.00 |
K |
Create/add to WishlistCreate/add to Wishlist |
5 | 1109091 | NLA - Programmer, Remote | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
1064404 | NLA - Virtual Service Modem Kit | 1 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
|
1091631 | NLA - Virtual Service Software Kit | 1 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
|
1046117 | NLA - Printer and Interface | 1 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
|
1091980 | NLA - Disk, 3.5 H.D. Floppy with V.S. Software | 1 | 1 | N/A | D ,F |
Create/add to WishlistCreate/add to Wishlist |
|
1095204 | NLA - Cable, Virtual Service, Charger/Modem | 1 | 1 | N/A | D ,E ,F |
Create/add to WishlistCreate/add to Wishlist |
|
1091637 | NLA - Adaptor, Null Modem | 1 | 1 | N/A | D ,F |
Create/add to WishlistCreate/add to Wishlist |
|
1091636 | NLA - Service Manual - V.S. Software Kit | 1 | 1 | N/A | D ,F |
Create/add to WishlistCreate/add to Wishlist |
|
1026572 | NLA - Paper, Printer | 1 | 1 | N/A | D ,G |
Create/add to WishlistCreate/add to Wishlist |
|
1027280 | NLA - Harness, Printer Wiring | 1 | 1 | N/A | D ,G |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | RII retro LP. controller after 4/30/00 and new RII joystick #1092610 serve as direct replacements forJoystick/Controller #1080953. |
B | RII retro controller after 4/30/00 and new RII joystick #1092610 serve as direct replacements for Joystick/Controller #1080723. |
C | Remote programmer #1109091 with the dual connectors (3-Pin and 5-Pin) is the only programmer functionable with the new RII joystick #1092610. |
D | Not Shown. |
E | May be ordered as an individual part or is included in the "Virtual Service Modem Kit." |
F | May be ordered as an individual part or is included in the "Virtual Service Software Kit." |
G | May be ordered as an individual part or is included in "Printer and Interface." |
H | MKIV Quad Pulse. |
I | MKIV RII L.P. Retro (After 4/30/00) (EXCEL). |
J | MKIV RII Retro (After 4/30/00) (RII and R2jr.). |
K | Not Shown. After 5/23/04 the Egg Reset Switch became available as a service part and can be used as a direct replacement for the tape reset switch part # 1020818. |
