Crossbraces & Hardware

Print this page

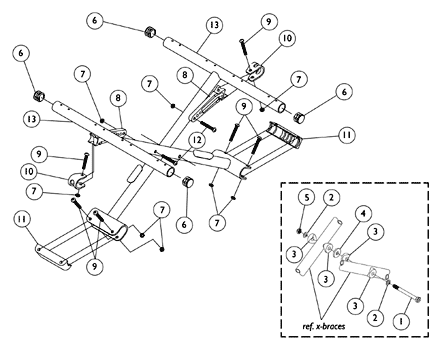

Crossbraces and Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1016261	Screw, Hex Head (5/16-24 x 3-1/4")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1016652	Washer (5/16 x 9/16 x 1/32")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1016263	Spacer, Coved (3/4 x 1 x 1/2")	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	7930313	Package, Washer, Nylon (5/16 x 7/8 x 1/8")	25	4	$44.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	7930363	NLA - Package, Locknut (5/16"-24)	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1029501	Plug Button, Black (1")	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	7930364	NLA - Package, Locknut (1/4-20)	25	8	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1019843	NLA - Link, Pivot, Black	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1008495	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1012180	Bracket, Pivot, Black	1	6	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1012172	NLA - Clamp, Saddle	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	7930301	NLA - Package, Button Head Cap Screw (1/4-20 x 1-3/4")	25	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1019848	NLA - Crossbrace (10" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1019849	NLA - Crossbrace (12" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1019850	NLA - Crossbrace (14" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1095497	Decal, Invacare Logo (1.6)	1	1	$7.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	7930364	NLA - Package, Locknut (1/4-20)			N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not Shown

Catalog Literature

Parts Books for Youthmobile 9000
