Wheel Lock

Print this page

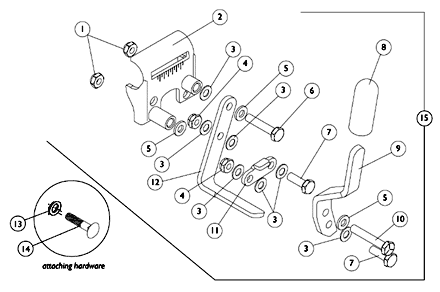

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	7930364	NLA - Package, Locknut (1/4-20)	25	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1016037	NLA - Bracket, Mounting, Chrome - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1016038	NLA - Bracket, Mounting, Chrome - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	7930357	NLA - Washer, Nylon (1/4 x 1/2 x 1/32")	25	7	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	7930367	NLA - Locknut (1/4-28)	25	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1010398	Washer, Nylon (1/4 x 1/2 x 1/16")	1	3			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1007017	NLA - Screw, Hex Head (1/4-20 x 1-1/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	60274X012	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	47376x024	Tip, Rubber Wheel Lock Handle, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1016588	NLA - Handle, Push, Adult, Chrome - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1016589	NLA - Handle, Push, Adult, Chrome - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	7930350	NLA - Package, Hex Head Screw (1/4-20 x 1-1/2")	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1016592	NLA - Link, Chrome	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1015443	NLA - Shoe	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1018739	Washer (1/4 x 5/8 x 3/32")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	60264X010	NLA - Screw, Hex Head (1/4-20 x 3/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1020001	NLA - Wheel Lock Assembly, Chrome - Right	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1020002	NLA - Wheel Lock Assembly, Chrome - Left	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 1-12
B	All Chairs Except Super Hemi

Catalog Literature

Parts Books for Youthmobile 9000
