Motors - Gearbox & Drive Wheel (Before 6/27/03)

Print this page

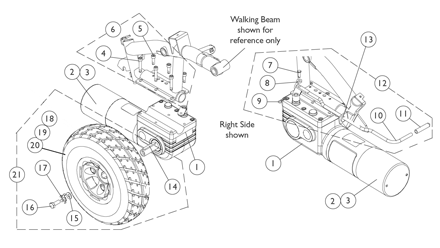

Motor, Gearbox and Drive Wheel (Before 6/27/03)

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1106490

Motor/Gearbox Assembly - Right

$1,184.00

Create/add to Wishlist

1106491

Motor/Gearbox Assembly - Left

$1,184.00

Create/add to Wishlist

1038361

NLA - Kit, Motor/Brake Covers with Screws

N/A

Create/add to Wishlist

1123528

NLA - Kit, Motor Brush - Internal (Large)

N/A

Create/add to Wishlist

1141284

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	NLA - Screw, Socket Head (M6 x 1 x 30mm)	1	3
5	Screw, Socket w/ Patch (M6 x 1 x 20mm)	1	3
5	NLA - Screw, Socket Head (M6 x 1 x 30mm)	1	3
6	Screw, Socket w/ Patch (M6 x 1 x 20mm)	1	3
5	NLA - Screw, Socket Head (M6 x 1 x 30mm)	1	3
6	Screw, Socket w/ Patch (M6 x 1 x 20mm)	1	3
4	NLA - Screw, Socket Head (M6 x 1 x 30mm)	1	3
5	Screw, Socket w/ Patch (M6 x 1 x 20mm)	1	3
2	NLA - Screw, Socket Head (M6 x 1 x 30mm)	1	3
3	Screw, Socket w/ Patch (M6 x 1 x 20mm)	1	3
5	NLA - Screw, Socket Head (M6 x 1 x 30mm)	1	3
6	Screw, Socket w/ Patch (M6 x 1 x 20mm)	1	3

Kit, Motor Mounting Hardware

$17.00

Create/add to Wishlist

1112249

NLA - Pin, Clevis, Black (1/4 x 37/64")

N/A

Create/add to Wishlist

1026034

NLA - Washer, Nylon (3/16 x 7/16 x 1/8")

N/A

Create/add to Wishlist

1115715

NLA - Pin, Bridge

N/A

Create/add to Wishlist

1112251

NLA - Lever, Motor Release

N/A

Create/add to Wishlist

1040060

Tip, Plastic, Black

$8.00

Create/add to Wishlist

1121978

NLA - Kit, Motor Lever and Mounting Hardware

N/A

Create/add to Wishlist

1071562

NLA - Bushing, Snap

N/A

Create/add to Wishlist

1102338

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
14	Key (6mm x 6mm x 40mm)	1	1
15	Washer, Flat (21/64 x 53/64 x 7/64")	1	1
16	Screw (M8 x 1.25 x 20mm)	1	1
17	Kit, Locking Tab Washer w/ Instruction Sheet (Pair)	2	1
20	NLA - Wheel Assembly, Drive w/ Bearings, Pneumatic (10" x 3")	1	1
14	Key (6mm x 6mm x 40mm)	1	1
15	Washer, Flat (21/64 x 53/64 x 7/64")	1	1
16	Screw (M8 x 1.25 x 20mm)	1	1
17	Kit, Locking Tab Washer w/ Instruction Sheet (Pair)	2	1
20	NLA - Wheel Assembly, Drive w/ Bearings, Pneumatic (10" x 3")	1	1
15	Key (6mm x 6mm x 40mm)	1	1
16	Washer, Flat (21/64 x 53/64 x 7/64")	1	1
17	Screw (M8 x 1.25 x 20mm)	1	1
18	Kit, Locking Tab Washer w/ Instruction Sheet (Pair)	2	1
21	NLA - Wheel Assembly, Drive w/ Bearings, Pneumatic (10" x 3")	1	1
15	Key (6mm x 6mm x 40mm)	1	1
16	Washer, Flat (21/64 x 53/64 x 7/64")	1	1
17	Screw (M8 x 1.25 x 20mm)	1	1
18	Kit, Locking Tab Washer w/ Instruction Sheet (Pair)	2	1
21	NLA - Wheel Assembly, Drive w/ Bearings, Pneumatic (10" x 3")	1	1
14	Key (6mm x 6mm x 40mm)	1	1
15	Washer, Flat (21/64 x 53/64 x 7/64")	1	1
16	Screw (M8 x 1.25 x 20mm)	1	1
17	Kit, Locking Tab Washer w/ Instruction Sheet (Pair)	2	1
20	NLA - Wheel Assembly, Drive w/ Bearings, Pneumatic (10" x 3")	1	1

Kit, Drive Wheel with Mounting Hardware - Pneumatic (10 x 3")

$166.00

D ,E

Create/add to Wishlist

1109005

Tire, Pneumatic, Grey (10" x 3")

$125.00

Create/add to Wishlist

1109028

NLA - Tube, Inner (10 x 3")

N/A

Create/add to Wishlist

1102339

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
17	Screw (M8 x 1.25 x 20mm)	1	1
18	Kit, Locking Tab Washer w/ Instruction Sheet (Pair)	1	1
21	Drive Wheel Assembly, Flat Free Foam, Grey Tire/Black Rim (10" x 3")	1	1
14	Key (6mm x 6mm x 40mm)	1	1
15	Washer, Flat (21/64 x 53/64 x 7/64")	1	1
16	Screw (M8 x 1.25 x 20mm)	1	1
17	Kit, Locking Tab Washer w/ Instruction Sheet (Pair)	1	1
20	Drive Wheel Assembly, Flat Free Foam, Grey Tire/Black Rim (10" x 3")	1	1
17	Kit, Locking Tab Washer w/ Instruction Sheet (Pair)	1	1
20	Drive Wheel Assembly, Flat Free Foam, Grey Tire/Black Rim (10" x 3")	1	1
14	Key (6mm x 6mm x 40mm)	1	1
15	Washer, Flat (21/64 x 53/64 x 7/64")	1	1
16	Screw (M8 x 1.25 x 20mm)	1	1
15	Key (6mm x 6mm x 40mm)	1	1
16	Washer, Flat (21/64 x 53/64 x 7/64")	1	1
15	Key (6mm x 6mm x 40mm)	1	1
16	Washer, Flat (21/64 x 53/64 x 7/64")	1	1
17	Screw (M8 x 1.25 x 20mm)	1	1
18	Kit, Locking Tab Washer w/ Instruction Sheet (Pair)	1	1
21	Drive Wheel Assembly, Flat Free Foam, Grey Tire/Black Rim (10" x 3")	1	1
14	Key (6mm x 6mm x 40mm)	1	1
15	Washer, Flat (21/64 x 53/64 x 7/64")	1	1
16	Screw (M8 x 1.25 x 20mm)	1	1
17	Kit, Locking Tab Washer w/ Instruction Sheet (Pair)	1	1
20	Drive Wheel Assembly, Flat Free Foam, Grey Tire/Black Rim (10" x 3")	1	1
2	Key (6mm x 6mm x 40mm)	1	1
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	1
4	Screw (M8 x 1.25 x 20mm)	1	1
5	Kit, Locking Tab Washer w/ Instruction Sheet (Pair)	1	1
7	Drive Wheel Assembly, Flat Free Foam, Grey Tire/Black Rim (10" x 3")	1	1

Kit, Drive Wheel with Mounting Hardware - Flat Free (10 x 3")

$173.00

D ,F

Create/add to Wishlist

1102342

Tire w/ Foam Fill Insert, Grey (10" x 3")

$152.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Motor lever attaching point changed from a yoke design to a flat surface. Item 12 must be ordered for chairs made before 5/15/02.
B	Includes items 4 and 5
C	Includes items 7-11
D	Includes items 14-17 and 20.
E	Part #1105042 Drive Wheel Assembly will already include the Pneumatic Tire and Inner Tube. Part #1105042 is sold in kit assembly part #1102338 only.
F	Part #1105043 Drive Wheel Assembly will already include the Tire w/ Foam Fill Insert.

Catalog Literature

Parts Books for Pronto® M71™ with SureStep®
