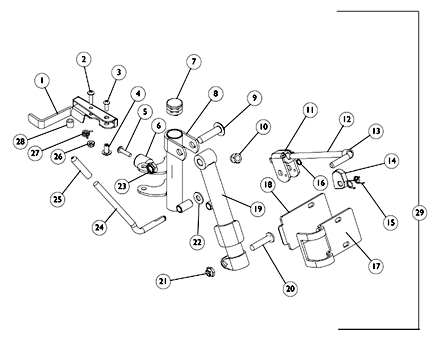

Front Riggings - Legrest Support Assembly
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Not shown |
| B | Due to product improvement - items 7, 9, 12, and 13 are NLA for chairs built before 6/94. Ratchet bar kit (item 5) must be ordered for those chairs. |
| C | After 5/94, the snap ring replaced the roll pin to attach the ratchet handle to the ratchet. |
| D | After 5/94 |
| E | Before 6/94 |
| F | Includes Items 10-14, 16, 22, 24, 25 & instruction sheet. |
| G | See page titled "Front Riggings Index" for Support Assembly |
