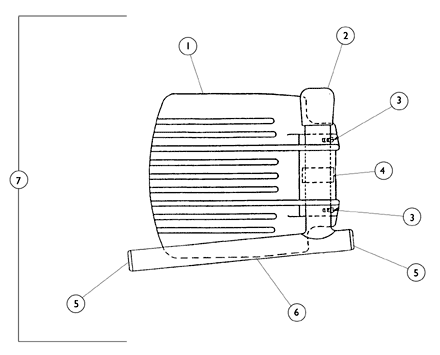

Front Riggings - Pivot Slide Tube with Footplate - H93E / H93M / H903MC / H903MK Footrests
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 | 44200X032 | NLA - Footplate, Aluminum, Extra Small, Black (5-3/4" W x 6" L) | 1 | 1 | N/A | A ,B |
Create/add to WishlistCreate/add to Wishlist |
| 1 | 44200X059 | Footplate, Aluminum, Small, Black (6-3/4" W x 6" L) | 1 | 1 |
$51.00 |
A ,C |
Create/add to WishlistCreate/add to Wishlist |
| 2 | 1016346 | Cap, End, Tube, Black (7/8") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 3 | 7930354 | NLA - Package, Phillips Head Screw (#8-32 x 3/8") | 25 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 4 | 1006981 | Spring, Tension | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 | 1027097 | Plug Button, Black (3/4") | 1 | 2 |
$7.50 |
Create/add to WishlistCreate/add to Wishlist |
|
| 6 | 1041528 | NLA - Pivot/Slide Tube w/ Plug Button, Chrome | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 7 | See Page | See Footnote | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Aluminum footplates on chairs built before 2/96 had a "Ball Burnish" finish. Footplates after 1/96 now have a black finish. When replacing 1 ball burish footplate it is suggested that 2 new (black) footplates be ordered. |
| B | 10-12" Wide Chairs |
| C | 14" Wide Chairs |
| D | See page titled "Front Riggings Index" for Pivot Slide Tube Assembly with Footplate |
