Wheel Lock Non-Recliner with Removable Arm

Print this page

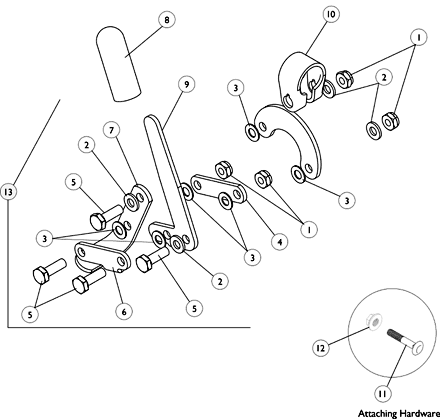

Wheel Lock Non-Recliner with Removable Arm

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	7930367	NLA - Locknut (1/4-28)	25	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	7930357	NLA - Washer, Nylon (1/4 x 1/2 x 1/32")	25	6	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	47559X024	NLA - Link, Flat, Chrome	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	60274X012	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	47559X025	NLA - Link, Chrome - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	47559X026	NLA - Link, Chrome - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	47559X032	NLA - Shoe	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	47376x024	Tip, Rubber Wheel Lock Handle, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	47559X028	NLA - Handle, Wheel Lock, Chrome - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	47559X029	NLA - Handle, Wheel Lock, Chrome - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	04512X113	NLA - Bracket, Mounting, Chrome - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	04512X114	NLA - Bracket, Mounting, Chrome - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1107321	Nut, Low Cap (5/16"-24)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	11232X009	Bolt, Lug (5/16-24 x 1-3/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1040829	NLA - Wheel Lock, Pull to Lock - Right	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1040830	NLA - Wheel Lock, Pull to Lock - Left	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Pull to Lock; Includes Items 1-10

Catalog Literature

Parts Books for Youthmobile 3000
