Front Pivot Bracket & Links Kit

Print this page

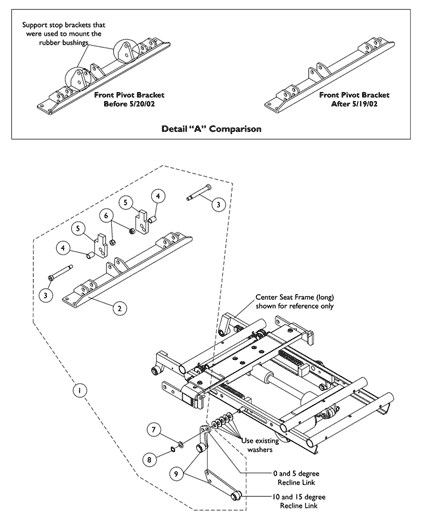

Front Pivot Bracket and Links Kit

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1

1112693

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Bracket, Pivot, Front, Black	1	1
3	NLA - Bolt, Shoulder (3/8 x 2-1/2")	1	2
4	NLA - Bushing, Black (7/16 x 1/2 x 11/16")	1	2
5	NLA - Block, Black Tilt Angle	1	2
6	Locknut (5/16-18)	1	2
7	Washer, Flat (3/8 x 11/16 x 1/16")	1	2
8	NLA - Ring, Retaining (3/8")	1	2
9	NLA - Link, Recline 0 and 5 Degree Seat Tilt, Black - Right	1	1
9	NLA - Link, Recline 0 and 5 Degree Seat Tilt, Black - Left	1	1
9	NLA - Link, Recline 10 and 15 Degree Seat Tilt, Black - Right	1	1
9	NLA - Link, Recline 10 and 15 Degree Seat Tilt, Black - Left	1	1
	NLA - Instuction Sheet, Replacing Front Pivot or Obtaining 0 degree Seat Tilt on Recline Only	1	1

NLA - Kit, Front Pivot Bracket and Links

1

1

N/A

A ,B

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Kit includes items 2-9 and the instruction sheet that is not shown. Kit is used for seating systems manufactured before 5/20/02.
B	Part number 1098338 is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.

Catalog Literature

Parts Books for Tarsys® Tilt Only (2GT™) Recline Only (2GR™) Tilt and Recline (2GTR™)
