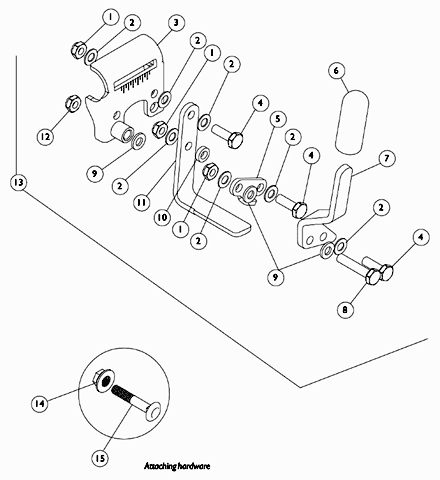

1

7930334

NLA - Locknut (1/4-28)

25

3

N/A

Create/add to Wishlist

2

1026103

Washer, Nylon (1/4 x 1/2 x 1/32")

1

7

$8.00

Create/add to Wishlist

3

1031787

NLA - Bracket, Mounting, Black - Right

1

N/A

Create/add to Wishlist

3

1031788

NLA - Bracket, Mounting, Black - Left

1

N/A

Create/add to Wishlist

4

1028687

Screw, Hex Head (1/4-28 x 3/4")

1

3

$10.00

Create/add to Wishlist

5

1021404

NLA - Link, Black

1

N/A

Create/add to Wishlist

6

47376x024

Tip, Rubber Wheel Lock Handle, Black

1

$8.00

Create/add to Wishlist

7

1021408

NLA - Handle, Wheel Lock, Black - Right

1

N/A

A

Create/add to Wishlist

7

1021409

NLA - Handle, Wheel Lock, Black - Left

1

N/A

A

Create/add to Wishlist

7

1031780

NLA - Handle, Pull/ Lock, Black - Right

1

N/A

B

Create/add to Wishlist

7

1031781

NLA - Handle, Pull/ Lock, Black - Left

1

N/A

B

Create/add to Wishlist

8

1021406

Screw, Hex Head (1/4-20 x 1-1/4")

1

$10.00

Create/add to Wishlist

9

1026033

Washer, Nylon (1/4 x 1/2 x 1/16")

1

3

$7.00

Create/add to Wishlist

10

1026105

NLA - Spacer, Nylon (1/4 x 7/16 x 1/8")

1

N/A

Create/add to Wishlist

11

1021405

NLA - Shoe, Wheel Lock

1

N/A

Create/add to Wishlist

12

7930323

NLA - Package, Locknut (1/4-20)

25

1

N/A

Create/add to Wishlist

13

1031792

Wheel Lock Assembly, Push to Lock, Adult - Right

1

$61.00

J

Create/add to Wishlist

13

1031793

Wheel Lock Assembly, Push to Lock, Adult - Left

1

$61.00

J

Create/add to Wishlist

13

1031794

Wheel Lock Assembly, Pull to Lock, Hemi - Right

1

$61.00

J

Create/add to Wishlist

13

1031795

Wheel Lock Assembly, Pull to Lock, Hemi - Left

1

$61.00

J

Create/add to Wishlist

14

1021403

Nut, Hex Flang (1/4-20)

1

$8.00

C

Create/add to Wishlist

15

1021402

Bolt, Carriage (1/4-20 x 1-1/4")

1

$8.00

C

Create/add to Wishlist

7400109

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
17	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
16	Spacer, Wheel Lock Shoe (2-7/16")	1	2
7	Spacer, Wheel Lock Shoe (2-7/16")	1	2
8	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
7	Spacer, Wheel Lock Shoe (2-7/16")	1	2
8	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
	Spacer, Wheel Lock Shoe (2-7/16")	1	2
	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
	Spacer, Wheel Lock Shoe (2-7/16")	1	2
	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
	Spacer, Wheel Lock Shoe (2-7/16")	1	2

Kit, Wheel Lock Shoe Spacer (Pair)

2

1

$28.00

D ,E ,F ,H

Create/add to Wishlist

1037422

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Spacer, Wheel Lock Shoe (1-45/64")	1	2
	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
	Spacer, Wheel Lock Shoe (1-45/64")	1	2
	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
18	Spacer, Wheel Lock Shoe (1-45/64")	1	2
19	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
18	Spacer, Wheel Lock Shoe (1-45/64")	1	2
19	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
	Spacer, Wheel Lock Shoe (1-45/64")	1	2
	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
14	Spacer, Wheel Lock Shoe (1-45/64")	1	2
15	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
7	Spacer, Wheel Lock Shoe (1-45/64")	1	2
8	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
7	Spacer, Wheel Lock Shoe (1-45/64")	1	2
8	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
18	Spacer, Wheel Lock Shoe (1-45/64")	1	2
19	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
	Spacer, Wheel Lock Shoe (1-45/64")	1	2
	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
	Spacer, Wheel Lock Shoe (1-45/64")	1	2
	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
	Spacer, Wheel Lock Shoe (1-45/64")	1	2
	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
	Spacer, Wheel Lock Shoe (1-45/64")	1	2
	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4

Kit, Wheel Lock Shoe Spacer, 22" Rear Wheels (Pair)

2

1

$44.00

D ,E ,G ,H

Create/add to Wishlist

7930306

NLA - Package, Screw, Set Socket Cup Point (#8-32 x 3/16")

25

2

N/A

H

Note Code	Definition
A	Push to Lock
B	Pull to Lock
C	Attaching Hardware
D	These items are not included with wheel lock, they may be needed if chair has 20" or 22" rear wheels.
E	Assembly includes Set Screws (pair)
F	20" Rear Wheels
G	22" Rear Wheels
H	Not Shown
J	Includes items 1 - 12.
